The maximum junction temperature that RSS065N03TB can withstand is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
To ensure the stability of the output voltage, it's essential to follow the recommended PCB layout and component placement guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range.
Yes, RSS065N03TB is suitable for high-frequency switching applications up to 100 kHz. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure that the application's requirements are within the device's specifications.
The recommended input capacitor value for RSS065N03TB is 10 μF to 22 μF, depending on the input voltage and operating frequency. A larger input capacitor can help to reduce input voltage ripple and improve the device's overall performance.
To protect RSS065N03TB from overcurrent and overheating, it's recommended to use a suitable current sense resistor, overcurrent protection circuitry, and thermal monitoring. Additionally, ensure that the device is operated within its specified current and thermal ratings.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RSS065N03TB Overview

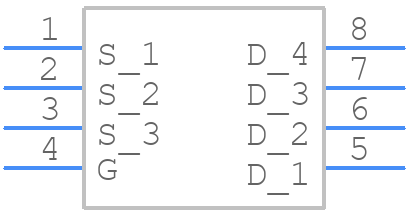

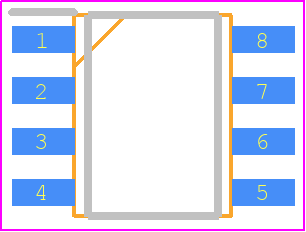

Use the download button to access the RSS065N03TB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSS06,
or try a keyword search, such as Power Field-Effect Transistors
