RSVVS220M1GDC3001U - Elna

Description: 22 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 10Ohm @ 120Hz 1000 Hrs @ 105°C

Download RSVVS220M1GDC3001U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RSVVS220M1GDC3001U - Elna - PCB symbol
click to zoom
PCB Footprints

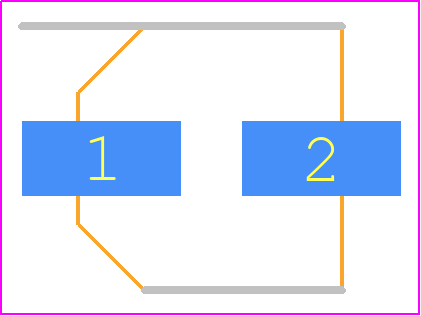

RSVVS220M1GDC3001U - Elna PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 6.3mm x 5.3mm
click to zoom
3D Models
RSVVS220M1GDC3001U - Elna - 3D model - Capacitor Al Electrolytic - 6.3mm x 5.3mm
click to zoom

RSVVS220M1GDC3001U Details

  • Manufacturer Part Number:

    RSVVS220M1GDC3001U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    ELNA America Inc

  • YTEOL:

    6

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    10000 mΩ

  • Height:

    5.3 mm

  • Leakage Current:

    0.0077 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    50 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.13

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

RSVVS220M1GDC3001U Frequently Asked Questions (FAQs)

  • The recommended land pattern for the RSVVS220M1GDC3001U can be found in the IPC-7351 standard or in ELNA's application notes. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent defects.
  • The RSVVS220M1GDC3001U is a general-purpose capacitor, and its high-frequency performance may not be optimal. For high-frequency applications, it's recommended to use a capacitor specifically designed for high-frequency use, such as those with a lower equivalent series resistance (ESR) and a higher self-resonant frequency.
  • The RSVVS220M1GDC3001U has a maximum operating temperature of 125°C. While it can tolerate high temperatures, it's essential to derate the capacitor's voltage and current ratings according to the manufacturer's guidelines to ensure reliable operation in high-temperature environments.
  • The RSVVS220M1GDC3001U has an MSL rating of 2 or 3, depending on the packaging and handling procedures. This means that the capacitor can be sensitive to moisture and requires proper handling and storage to prevent damage.
  • The RSVVS220M1GDC3001U is a general-purpose capacitor and may not meet the requirements for safety-critical applications. For safety-critical applications, it's recommended to use a capacitor that meets the relevant safety standards, such as IEC 60384-14 or UL 810.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RSVVS220M1GDC3001U Overview

Use the download button to access the RSVVS220M1GDC3001U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSVVS, or try a keyword search, such as Aluminum Electrolytic Capacitors
