RT2856GQW - RICHTEK

Description: Switching Voltage Regulators 6A, 18V, Synchronous Step-Down Converter

Download RT2856GQW Model

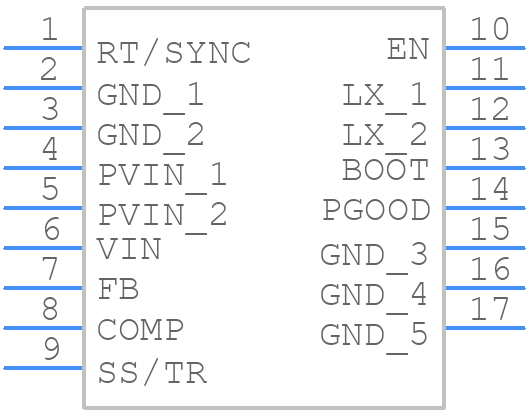

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT2856GQW - RICHTEK PCB footprint - Other - Other - W-Type 14AL QFN 3.5x3.5
click to zoom
3D Models
RT2856GQW - RICHTEK  - 3D model - Other - W-Type 14AL QFN 3.5x3.5
click to zoom

RT2856GQW Details

  • Manufacturer Part Number:

    RT2856GQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WQFN3.5x3.5-14A

  • Manufacturer Package Code:

    WQFN3.5x3.5-14A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N14

  • Length:

    3.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1760 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

RT2856GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The IC should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure stability, a minimum output capacitance of 10uF with an ESR of 1ohm or less is recommended. Additionally, the output voltage should be decoupled with a 1uF ceramic capacitor.
  • The maximum input voltage that can be applied to the RT2856GQW is 18V. Exceeding this voltage may damage the device.
  • The output voltage can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the feedback network.
  • The maximum output current that the RT2856GQW can deliver is 3A. Exceeding this current may cause the device to overheat or shut down.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT2856GQW Overview

Use the download button to access the RT2856GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT285, or try a keyword search, such as Switching Regulator or Controllers
