- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RT5035CGQW
- Part Number RT5035CGQW
- Manufacturer RICHTEK
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 40L QFN 5x5
- Released Date Apr 20, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RT5035CGQW Details
-
Manufacturer Part Number:
RT5035CGQW
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
YTEOL:
6
-
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
RT5035CGQW Frequently Asked Questions (FAQs)
-
Richtek provides a recommended PCB layout in their application note ANI-23, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
The input capacitor selection depends on the input voltage, output voltage, and output current. Richtek recommends using a low-ESR capacitor with a value between 4.7uF to 10uF, and a voltage rating of at least 1.5 times the maximum input voltage. Additionally, the capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.
-
The EN pin is a digital input and should not exceed the maximum rating of 6V. Applying a voltage higher than 6V may damage the internal circuitry. It's recommended to use a voltage divider or a buffer circuit to ensure the EN pin voltage remains within the specified range.
-
To ensure the RT5035CGQW operates within the specified junction temperature range, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to follow the recommended PCB layout guidelines. Additionally, the device should be operated within the specified input voltage and output current ranges to minimize power dissipation.
-
Richtek recommends using a low-ESR output capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the output voltage. The output capacitor should be placed as close as possible to the VOUT pin to minimize noise and ripple. A ceramic or polymer capacitor is recommended due to their low ESR and high reliability.
Trust Checks
Community Provided
System Verified
Community Approved
RT5035CGQW Overview

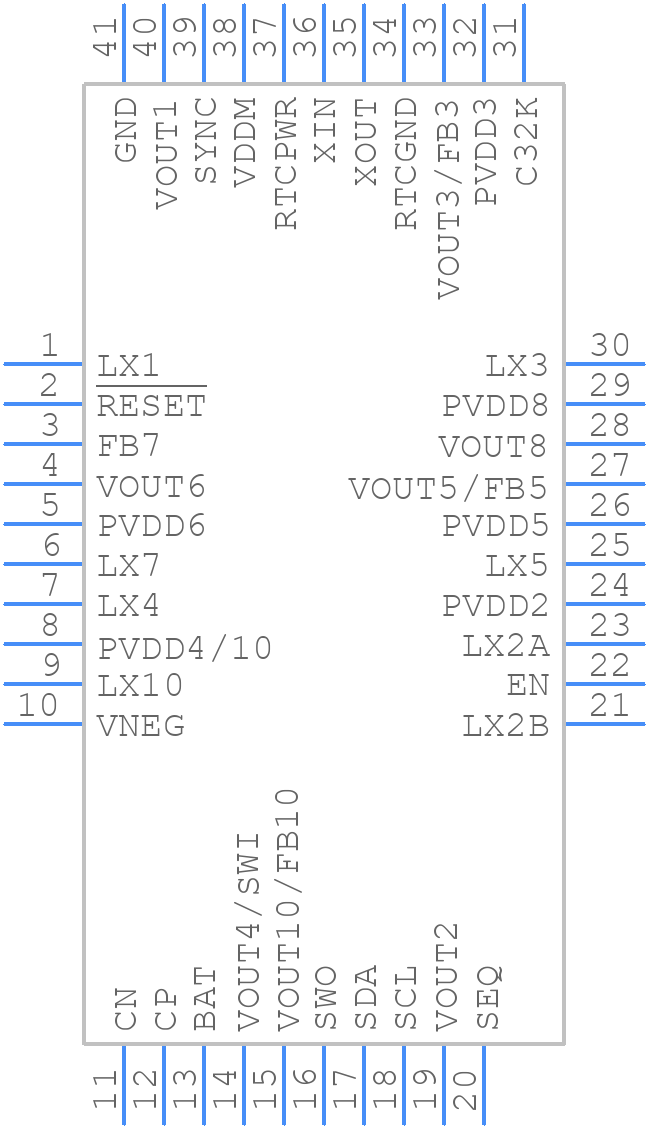

Use the download button to access the RT5035CGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT503,
or try a keyword search, such as Power Management Circuits
