RT6220AGQUF footprint, schematic symbol and 3D model by RICHTEK

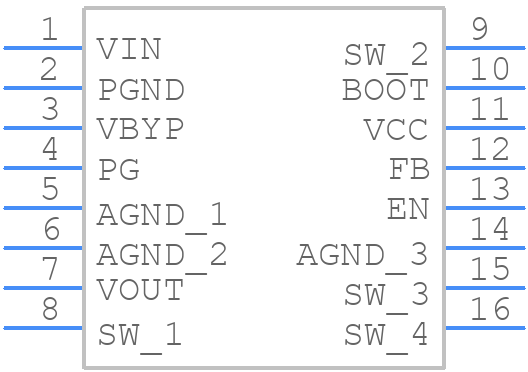

Symbol

click to zoom

PCB Footprints

RT6220AGQUF - RICHTEK PCB footprint - Other - Other - RT6220AGQUF-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RT6220AGQUF
Part Number RT6220AGQUF
Manufacturer RICHTEK
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RT6220AGQUF-3
Released Date May 28, 2026
Last Modified Date May 28, 2026 11:16 AM UTC
Pinout / Pin List Click Here (Member Only)

RT6220AGQUF Details

Manufacturer Part Number:
RT6220AGQUF
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Richtek Technology Corp
YTEOL:
8
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
23 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XQCC-N16
Length:
3 mm
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
5 V
Output Voltage-Min:
0.6 V
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC16(UNSPEC)
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Seated Height-Max:
0.6 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
550 kHz
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
3 mm

RT6220AGQUF Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT6220AGQUF should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, minimize the distance between the RT6220AGQUF and the output capacitor.
The maximum safe operating junction temperature is 150°C. Exceeding this temperature may reduce the lifespan of the device or cause permanent damage.
Yes, the RT6220AGQUF is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required to ensure compliance with specific industry standards.
Check the input voltage, output capacitor value, and PCB layout. Verify that the device is properly soldered and that there are no signs of physical damage. Consult the datasheet and application notes for troubleshooting guidelines.
