RT6236AHGQUF - RICHTEK

Description: Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 6A 13-UFQFN

Download RT6236AHGQUF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

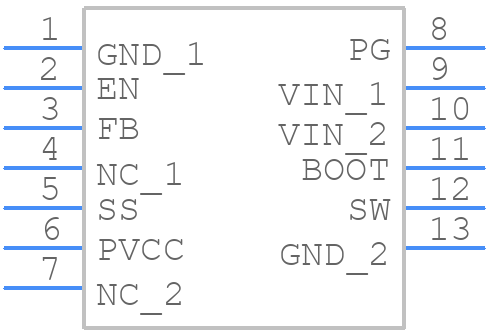

RT6236AHGQUF - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT6236AHGQUF - RICHTEK PCB footprint - Other - Other - UQFN-13JL 2x3 (FC)
click to zoom
3D Models
RT6236AHGQUF - RICHTEK - 3D model - Other - UQFN-13JL 2x3 (FC)
click to zoom

RT6236AHGQUF Details

  • Manufacturer Part Number:

    RT6236AHGQUF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN2x3-13J(FC)

  • Manufacturer Package Code:

    UQFN2x3-13J(FC)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Additional Feature:

    OUTPUT IN ADJUSTABLE MODE IS 0.7V TO 8V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N13

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8.9 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC13(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    650 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    2 mm
