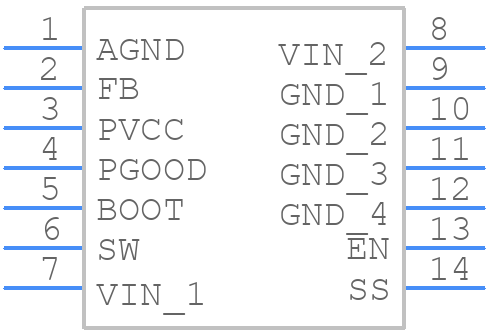

RT6239AHGQUF - RICHTEK

RT6239AHGQUF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Richtek provides a recommended PCB layout in their application note ANI23, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
• How do I select the correct output capacitor for this regulator?
  The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. A X5R or X7R ceramic capacitor is a good choice.
• What is the maximum input voltage that can be applied to the RT6239AHGQUF?
  Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the internal circuitry.
• How do I implement overcurrent protection with the RT6239AHGQUF?
  The RT6239AHGQUF has a built-in overcurrent protection feature that limits the output current to 2.5A. To implement additional overcurrent protection, you can add an external current sense resistor and a comparator to detect overcurrent conditions and shut down the regulator if necessary.
• What is the thermal shutdown temperature of the RT6239AHGQUF?
  The thermal shutdown temperature is typically around 150°C, but this can vary depending on the specific device and operating conditions. It's essential to ensure good thermal design and heat dissipation to prevent thermal shutdown.
