Richtek provides a recommended PCB layout in their application note ANI-45, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Richtek recommends using a Type III compensation network for the output filter, with a suggested component values and layout provided in the datasheet. Additionally, the application note ANI-45 provides more detailed guidance on output filter design and optimization.
Although not explicitly stated in the datasheet, Richtek recommends keeping the input voltage ripple below 1% of the nominal input voltage to ensure stable operation and prevent oscillations.
While the RT6285GSP is rated for operation up to 125°C, Richtek recommends derating the output current and power dissipation at high temperatures to ensure reliable operation. Consult the datasheet and application notes for specific guidance on thermal derating.
Richtek provides a troubleshooting guide in their application note ANI-45, which covers common causes of oscillations and instability, such as inadequate output filtering, poor PCB layout, and incorrect component selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT6285GSP Overview

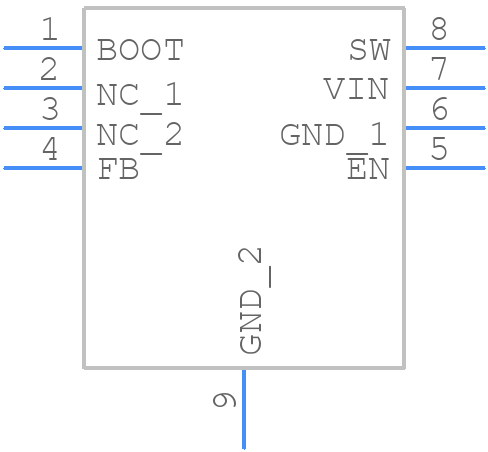

Use the download button to access the RT6285GSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT628,
or try a keyword search, such as Switching Regulator or Controllers
