RT6585BGQW - RICHTEK

Description: Switching Controllers Dual-Channel Synchronous DC/DC Step-Down Controller with 5V/3.3V LDOs

Download RT6585BGQW Model

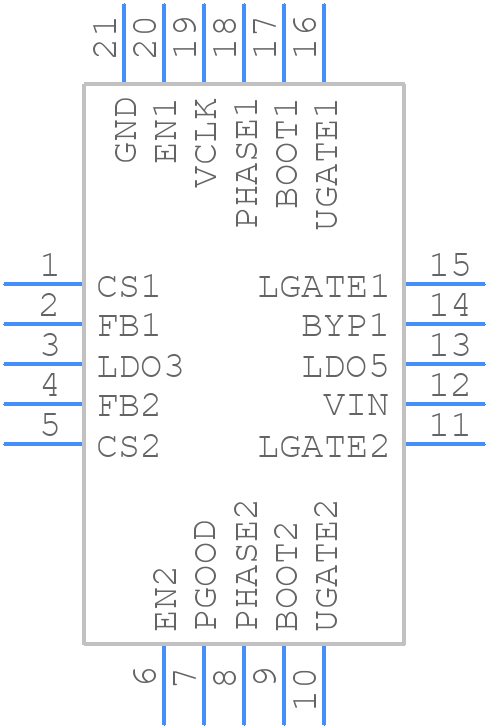

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT6585BGQW - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN-20L 3x3
click to zoom
3D Models
RT6585BGQW - RICHTEK  - 3D model - Quad Flat No-Lead - WQFN-20L 3x3
click to zoom

RT6585BGQW Details

  • Manufacturer Part Number:

    RT6585BGQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • Additional Feature:

    5V OUTPUT ALSO HAS AVAILABLE

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    2 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    570 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

RT6585BGQW Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI45, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. A X5R or X7R dielectric is recommended for stable operation.
  • Although the datasheet specifies a maximum input voltage of 18V, Richtek recommends limiting the input voltage to 15V to ensure reliable operation and prevent damage to the internal circuitry.
  • The RT6585BGQW has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. Richtek provides a calculation formula for selecting the correct resistor value in their datasheet.
  • Richtek recommends using a 1uF to 10uF ceramic capacitor with a voltage rating of at least 1.5 times the input voltage. A X5R or X7R dielectric is recommended for stable operation. The input capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.
