RT7257GHZSP - RICHTEK

Description: IC REG BUCK ADJUSTABLE 3A 8SOP

Download RT7257GHZSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

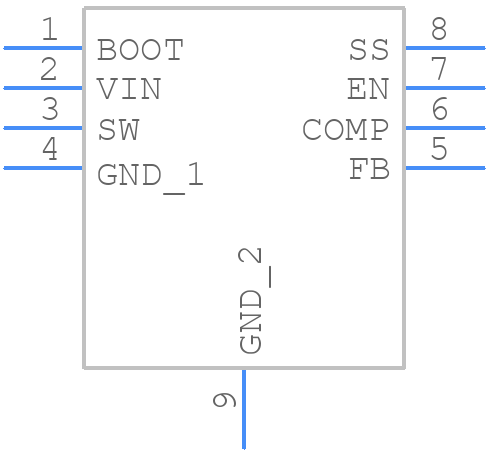

RT7257GHZSP - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT7257GHZSP - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOP
click to zoom
3D Models
RT7257GHZSP - RICHTEK - 3D model - Small Outline Packages - 8-Lead SOP
click to zoom

RT7257GHZSP Details

  • Manufacturer Part Number:

    RT7257GHZSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PSOP-8

  • Manufacturer Package Code:

    PSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    800 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

RT7257GHZSP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal relief pattern on the top layer is recommended. Ensure a minimum of 2 oz copper thickness and a thermal via array under the IC to dissipate heat efficiently.
  • Use the recommended compensation network values in the datasheet as a starting point. Then, adjust RCOMP and CCOMP based on the specific application's load transient requirements. A smaller RCOMP and larger CCOMP can improve transient response, but may compromise stability.
  • The RT7257GHZSP can tolerate up to 10% of the input voltage as ripple. Exceeding this may cause instability or affect the converter's performance. Use input capacitors with low ESR to minimize voltage ripple.
  • Choose an inductor with a low Q factor (e.g., < 10) to ensure stability. If a high-Q inductor is used, add a damping resistor (Rd) in series with the inductor to reduce the Q factor and prevent oscillations.
  • A soft-start time of 1-2 ms is recommended to prevent inrush currents and ensure a smooth startup. Adjust the soft-start time based on the specific application's requirements.
