A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT7266ZSP's thermal pad should be connected to the ground plane through multiple thermal vias to ensure efficient heat dissipation.
To ensure stable and accurate output voltage, it is essential to use a high-quality output capacitor with low ESR and a sufficient capacitance value (e.g., 10uF). Additionally, the input voltage should be well-regulated, and the output voltage should be monitored and adjusted as needed.
The RT7266ZSP can handle input voltages up to 24V, but it is recommended to operate within the specified input voltage range (4.5V to 18V) for optimal performance and reliability.
Implement overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms, such as using a current sense resistor and a thermal shutdown circuit. Additionally, ensure proper thermal design and heat sinking to prevent overheating.
Yes, the RT7266ZSP is suitable for high-reliability and automotive applications. However, it is essential to follow the recommended operating conditions, and additional testing and validation may be required to ensure compliance with specific industry standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT7266ZSP Overview

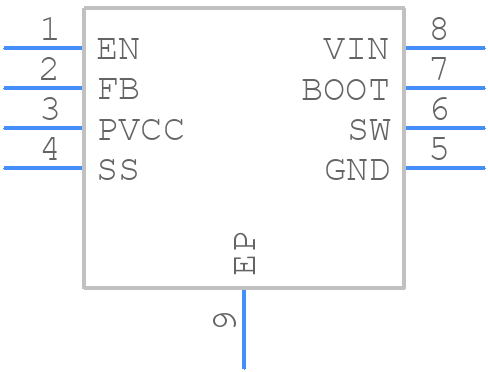

Use the download button to access the RT7266ZSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT726,
or try a keyword search, such as Switching Regulator or Controllers
