Part Image

RT8073GQW - RICHTEK

Description: IC REG BUCK ADJ 6A SYNC 12WDFN

Download RT8073GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

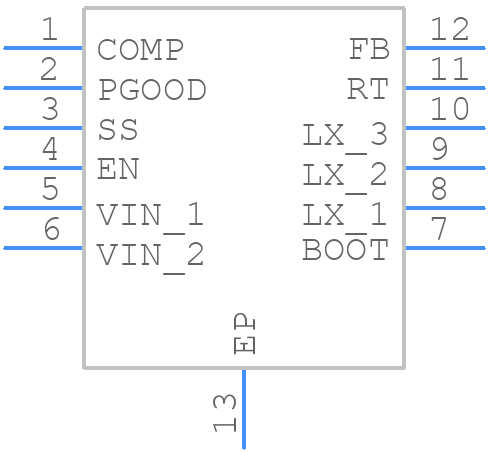

Symbol
RT8073GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8073GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT8073GQW
click to zoom
3D Models
RT8073GQW - RICHTEK - 3D model - Small Outline No-lead - RT8073GQW
click to zoom

RT8073GQW Details

  • Manufacturer Part Number:

    RT8073GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-12

  • Manufacturer Package Code:

    12WDFN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-N12

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

RT8073GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8073GQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to place the output capacitor close to the RT8073GQW.
  • The maximum input voltage that can be applied to the RT8073GQW is 28V, but it is recommended to operate within the specified input voltage range of 6.5V to 24V for optimal performance and reliability.
  • The RT8073GQW has a built-in overcurrent protection (OCP) feature that limits the output current to 3.5A. Additionally, it is recommended to add external overcurrent protection devices, such as fuses or PTC resistors, to protect the device from excessive current.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor, placed close to the RT8073GQW's VIN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8073GQW Overview

Use the download button to access the RT8073GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT807, or try a keyword search, such as Switching Regulator or Controllers
