RT8122-12-5M0 footprint, schematic symbol and 3D model by Schaffner

Symbol

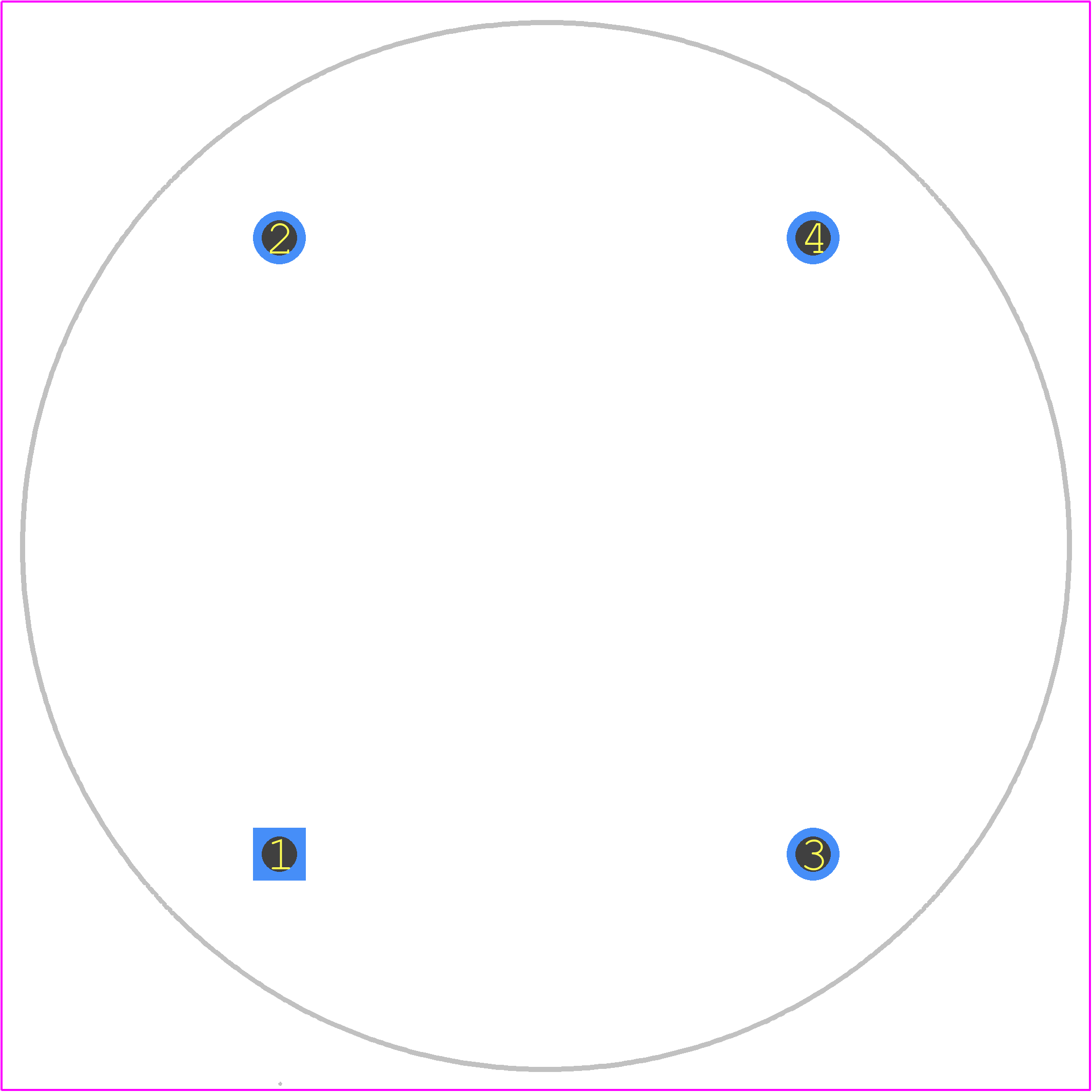

PCB Footprints

3D Models

RT8122-12-5M0 Details

Schaffner recommends a symmetrical PCB layout with a solid ground plane, and the use of vias to connect the filter's ground pins to the ground plane. Additionally, the input and output traces should be kept short and away from each other to minimize electromagnetic interference.
The RT8122-12-5M0 is rated for operation up to 85°C, but derating may be necessary for higher temperatures. Schaffner recommends consulting their application notes for temperature derating guidelines.
The RT8122-12-5M0 meets various safety certifications, including UL, ENEC, and CQC. However, the final product must be certified as a whole system. Schaffner recommends consulting their safety certification documentation and working with a qualified test house to ensure compliance.
Schaffner recommends using the provided screw holes for mounting the RT8122-12-5M0 to a metal chassis or PCB. The filter should be securely fastened to prevent vibration and ensure good thermal conductivity.
Yes, the RT8122-12-5M0 can be used in a redundant or parallel configuration, but Schaffner recommends consulting their application notes for specific guidelines and considerations to ensure proper operation and safety.

Community Provided

System Verified

Community Approved

Use the download button to access the RT8122-12-5M0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RT812, or try a keyword search, such as Mains Filters
