RT8122-16-4M0 footprint, schematic symbol and 3D model by Schaffner

Symbol

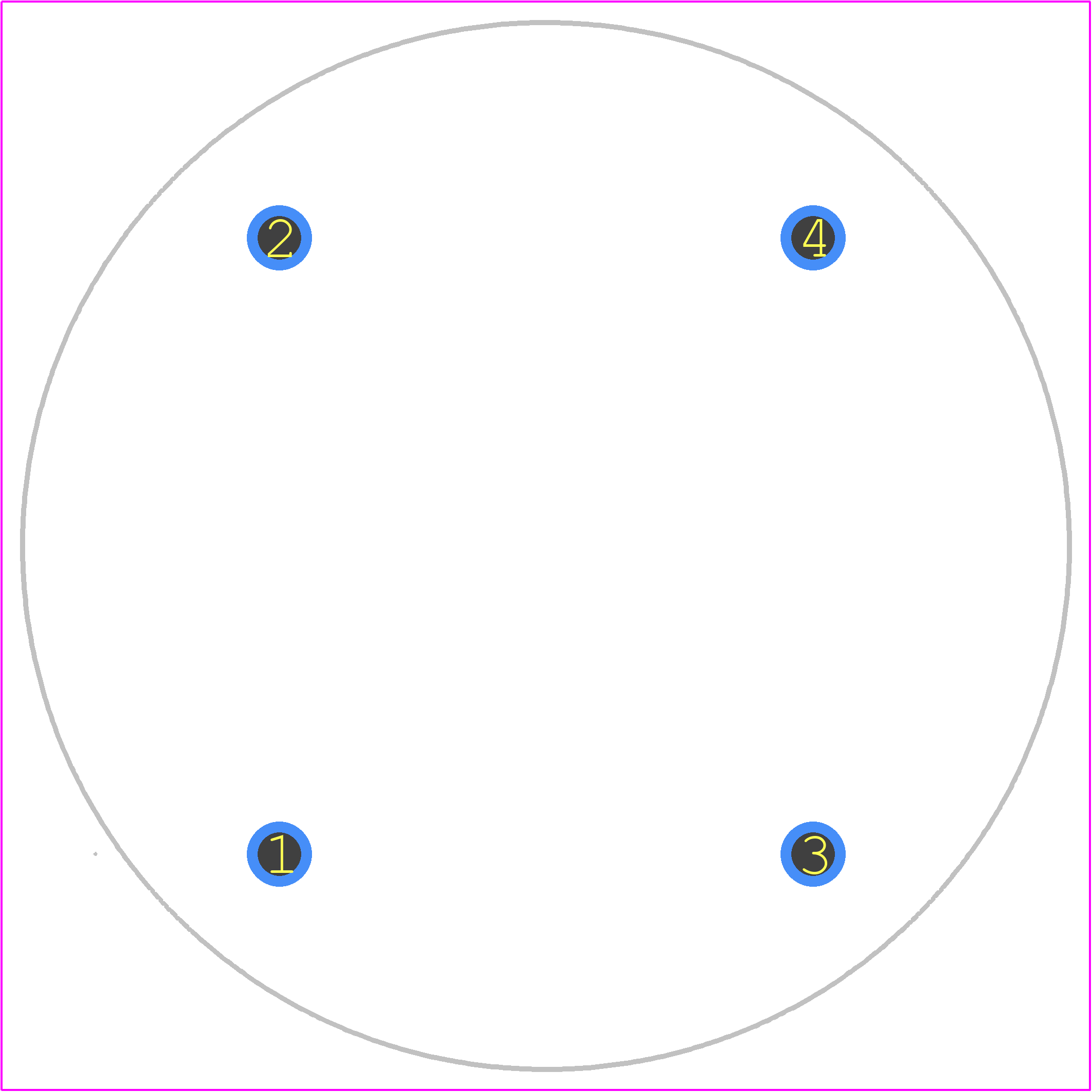

PCB Footprints

3D Models

RT8122-16-4M0 Details

Schaffner recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize electromagnetic interference (EMI).
Yes, the RT8122-16-4M0 can be used in a redundant configuration, but it requires additional external circuitry to ensure proper synchronization and switchover between the redundant units.
The RT8122-16-4M0 can operate from -40°C to +85°C, but derating may be required for high-temperature applications. Consult the datasheet for specific derating curves.
Yes, the RT8122-16-4M0 can be used in a DC-DC converter application, but it requires additional external components, such as inductors and capacitors, to filter the output voltage.
The recommended input voltage range for the RT8122-16-4M0 is 100-240VAC, but it can operate from 90-264VAC with reduced performance and efficiency.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RT8122-16-4M0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RT812, or try a keyword search, such as Mains Filters
