Part Image

RT8131BGQW - RICHTEK

Description:  High Light Load Efficiency  Single 5V Driver Voltage  Integrated High Driving Capability N-MOSFET Gate Drivers  300kHz Fixed Frequency Internal Oscillator  88% Maximum PWM Duty Cycle  Power Good Indicator  Enable/Disable Control  Internal Soft-Start  Lossless Low-Side MOSFET RDS(ON) Current Sensing for Over-Current Fault Monitoring  LGATE Over-Current Setting (LGOCS)  OCP, UVP, OVP, OTP, UVLO

Download RT8131BGQW Model

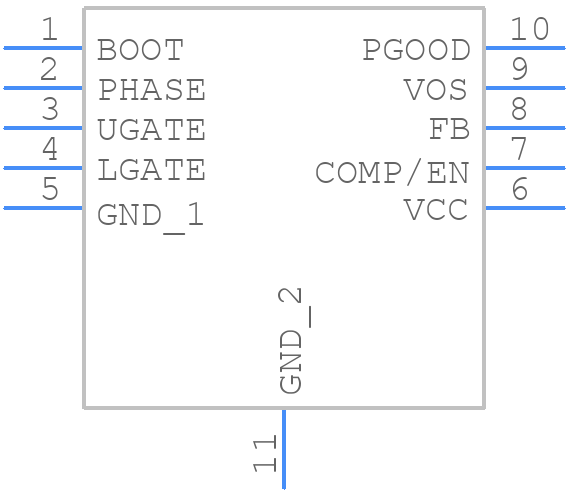

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT8131BGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 10L DFN 3x3
click to zoom
3D Models
RT8131BGQW - RICHTEK  - 3D model - Small Outline No-lead - W-Type 10L DFN 3x3
click to zoom

RT8131BGQW Details

  • Manufacturer Part Number:

    RT8131BGQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

RT8131BGQW Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note AND9131, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure stability and reliability, follow the recommended operating conditions, decoupling, and layout guidelines in the datasheet. Additionally, consider simulating the design using tools like SPICE or PSpice to verify performance and stability.
  • Although not explicitly stated in the datasheet, Richtek recommends keeping the input voltage ripple below 1% of the nominal input voltage to ensure stable operation and prevent oscillations.
  • The RT8131BGQW is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for derating curves and ensure proper thermal management to prevent overheating.
  • Start by verifying the input voltage, output voltage, and current. Check for proper decoupling, layout, and component selection. Use an oscilloscope to monitor the output voltage and current waveforms. Consult Richtek's application notes and technical support resources for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8131BGQW Overview

Use the download button to access the RT8131BGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT813, or try a keyword search, such as Switching Regulator or Controllers
