RT8132-10-4M0 footprint, schematic symbol and 3D model by Schaffner

Symbol

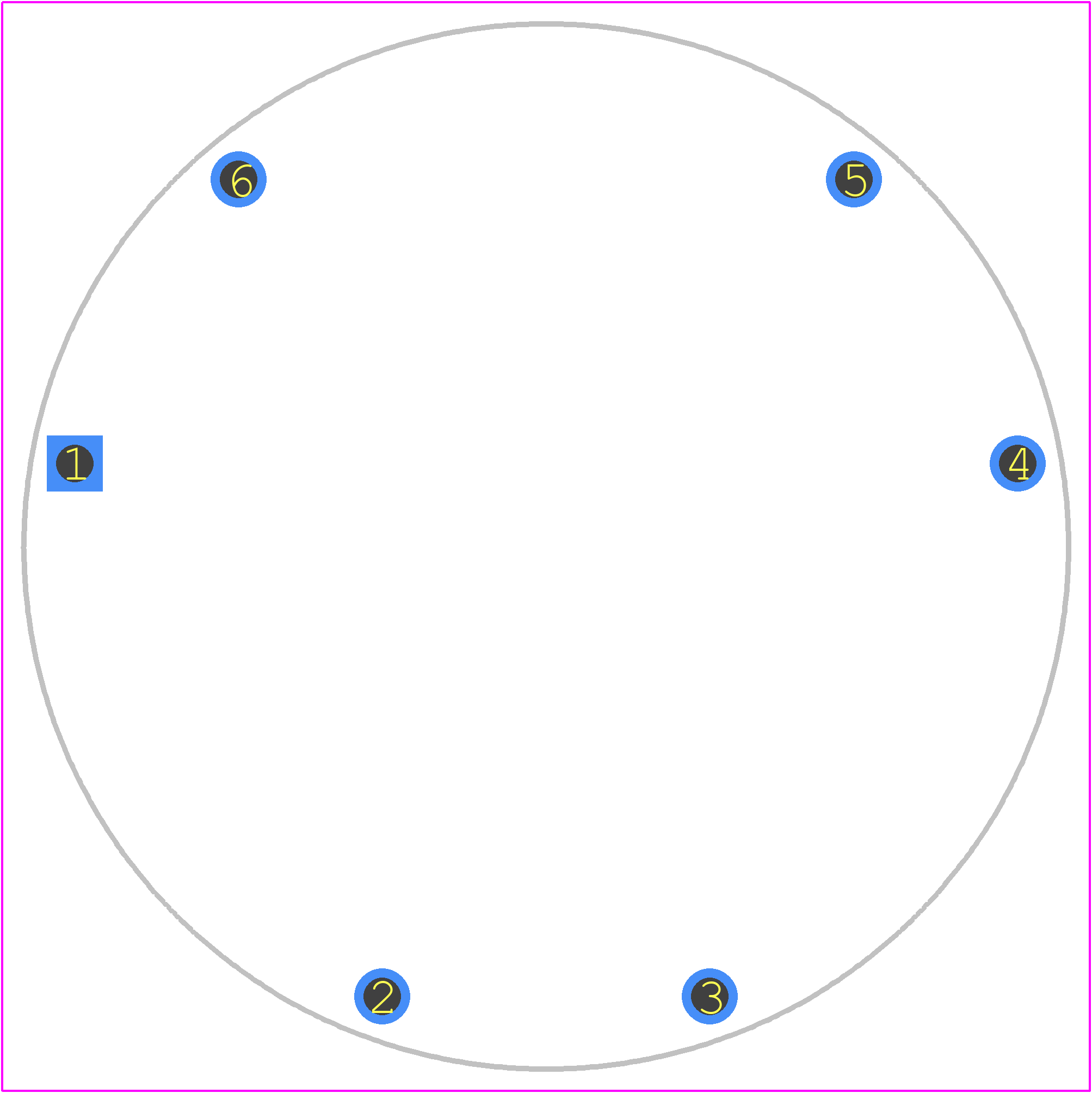

PCB Footprints

RT8132-10-4M0 Details

Schaffner recommends a symmetrical PCB layout with a solid ground plane, and the use of vias to connect the input and output pins to the ground plane. Additionally, the input and output capacitors should be placed as close as possible to the device.
The RT8132-10-4M0 has a thermal pad on the bottom of the device, which should be connected to a heat sink or a metal plate on the PCB. Ensure good thermal contact between the device and the heat sink, and consider using thermal interface material if necessary.
Schaffner recommends that the voltage imbalance between the input phases should not exceed 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
Yes, the RT8132-10-4M0 can be used in a redundant configuration to improve system reliability. However, Schaffner recommends consulting with their application engineers to ensure proper implementation and to discuss specific requirements.
The typical lead time for delivery of the RT8132-10-4M0 varies depending on the region and the quantity ordered. It's best to check with Schaffner's sales team or authorized distributors for the most up-to-date lead time information.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RT8132-10-4M0 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RT813, or try a keyword search, such as Mains Filters
