The recommended layout and placement for the RT8250GSP involves placing the IC close to the input capacitors, keeping the input and output traces short and wide, and using a solid ground plane to reduce noise and EMI.
To optimize the RT8250GSP for low noise and high PSRR, use a low-ESR input capacitor, add a noise filter capacitor at the input, and ensure a good ground plane and decoupling capacitors.
The RT8250GSP can handle a maximum input voltage of 18V, but it's recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
To ensure stability, use a minimum output capacitance of 10uF, keep the output voltage within the specified range, and avoid using a high-ESR output capacitor. Also, ensure the input voltage is within the specified range and the device is operated within the recommended temperature range.
The thermal derating curve for the RT8250GSP is typically provided in the datasheet or can be obtained from the manufacturer. It's essential to follow the thermal derating curve to ensure the device operates within a safe temperature range and to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8250GSP Overview

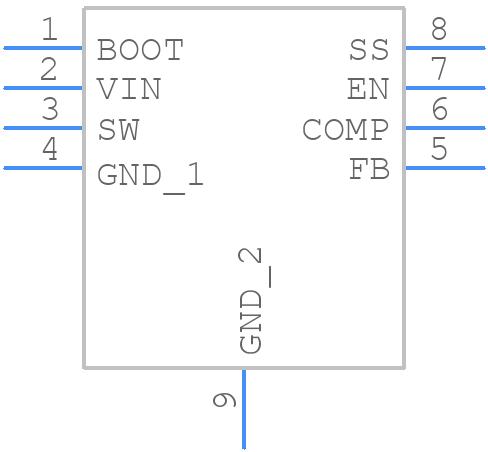

Use the download button to access the RT8250GSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT825,
or try a keyword search, such as Switching Regulator or Controllers
