RT8287AZQW - RICHTEK

Description: Switching Voltage Regulators 4A, 21V 500kHz Synchronous Step-Down Converter

Download RT8287AZQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

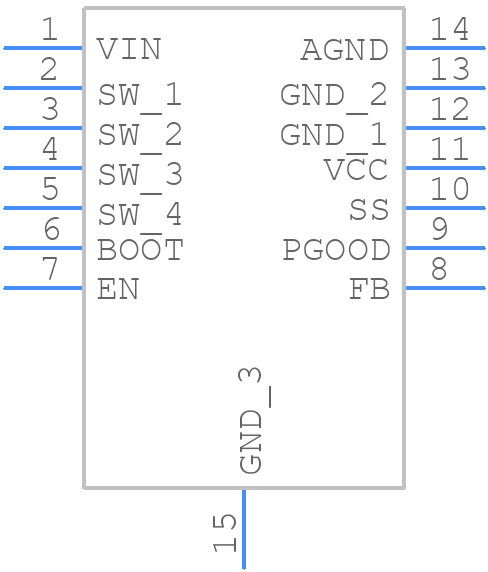

Symbol
RT8287AZQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8287AZQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN-14L 4x3
click to zoom
3D Models
RT8287AZQW - RICHTEK - 3D model - Small Outline No-lead - WDFN-14L 4x3
click to zoom

RT8287AZQW Details

  • Manufacturer Part Number:

    RT8287AZQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-14

  • Manufacturer Package Code:

    14WDFN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-N14

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    575 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

RT8287AZQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The IC should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R). Also, minimize the distance between the IC and the output capacitor.
  • The maximum output current capability is 3A, but it can be limited by the thermal performance of the PCB and the ambient temperature. De-rating may be necessary for high-temperature applications.
  • The output voltage can be adjusted by changing the resistor divider network connected to the FB pin. The recommended resistor values can be calculated using the formula provided in the datasheet.
  • The EN pin is an active-high enable input that allows the IC to be shut down or enabled. Connect the EN pin to a logic high (e.g., VCC) to enable the IC, or to a logic low (e.g., GND) to shut it down.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8287AZQW Overview

Use the download button to access the RT8287AZQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT828, or try a keyword search, such as Switching Regulator or Controllers
