- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RT8289GSP
- Part Number RT8289GSP
- Manufacturer RICHTEK
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-Lead SOP (Exposed Pad)
- Released Date Feb 4, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RT8289GSP Details
-
Manufacturer Part Number:
RT8289GSP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Part Package Code:
PSOP-8
-
Manufacturer Package Code:
PSOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
RT8289GSP Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
-
Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. The capacitance value should be between 4.7uF to 10uF for the input capacitor and 10uF to 22uF for the output capacitor.
-
The RT8289GSP can operate in an ambient temperature range of -40°C to 85°C. However, the junction temperature should not exceed 125°C.
-
Ensure that the input and output capacitors are properly selected and placed close to the IC. Also, make sure the PCB layout is well-designed, and the power lines are decoupled with a 10nF to 100nF capacitor.
-
Yes, the RT8289GSP can handle high currents up to 3A. However, ensure that the PCB is designed to handle the high current, and the thermal design is adequate to prevent overheating.
Trust Checks
Expert Contribution
System Verified
Community Approved
RT8289GSP Overview

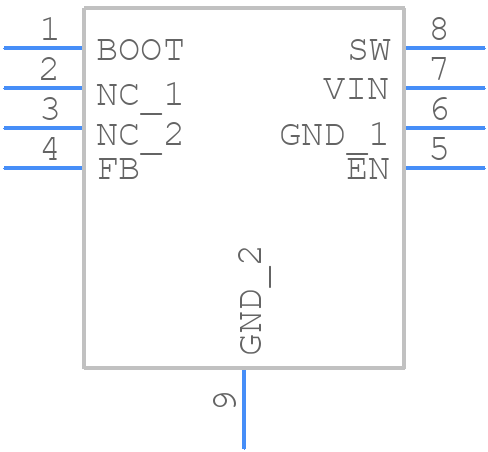

Use the download button to access the RT8289GSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT828,
or try a keyword search, such as Switching Regulator or Controllers
