RT8452GQW - RICHTEK

Description: IC LED DRIVER CTRLR PWM 16WQFN

Download RT8452GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

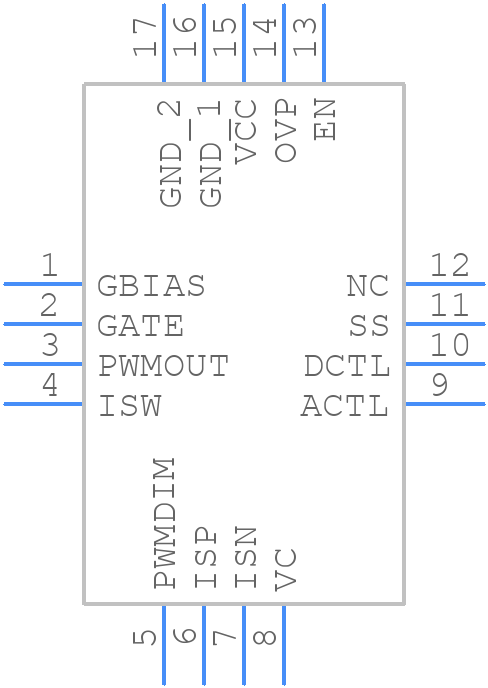

RT8452GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8452GQW - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - W-Type 16L QFN 3x3 _2021
click to zoom
3D Models
RT8452GQW - RICHTEK - 3D model - Quad Flat No-Lead - W-Type 16L QFN 3x3 _2021
click to zoom

RT8452GQW Details

  • Manufacturer Part Number:

    RT8452GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WQFN-16

  • Manufacturer Package Code:

    16WQFN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    S-PQCC-N16

  • Number of Terminals:

    16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    420 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD
