RT8509AGQW - RICHTEK

Description: Switching Voltage Regulators 4.5A Step-Up DC/DC Converter

Download RT8509AGQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

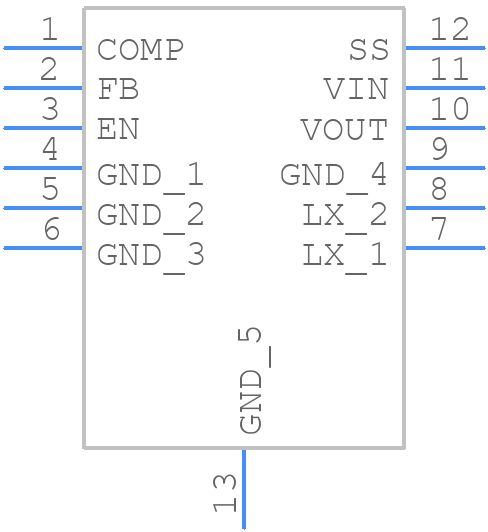

RT8509AGQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8509AGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT8509AGQW
click to zoom
3D Models
RT8509AGQW - RICHTEK - 3D model - Small Outline No-lead - RT8509AGQW
click to zoom

RT8509AGQW Details

  • Manufacturer Part Number:

    RT8509AGQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    WDFN5x5-12

  • Manufacturer Package Code:

    WDFN5x5-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

RT8509AGQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Use a high-quality output capacitor with low ESR, and ensure the input capacitor is properly sized to handle input voltage ripple. Also, ensure the feedback network is properly compensated.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • Yes, but the device is only specified up to 125°C. For temperatures above 125°C, derate the output current and ensure proper thermal management.
  • Use an external current sense resistor and a fuse or a PTC thermistor to protect the device from overcurrent conditions. Also, ensure the output is properly decoupled to prevent oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8509AGQW Overview

Use the download button to access the RT8509AGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT850, or try a keyword search, such as Switching Regulator or Controllers
