RT8509GQW - RICHTEK

Description: DC-DC CONV, BOOST, ADJ, 1.2MHZ, WDFN-10; Topology:Boost (Step Up); Input Voltage Min:2.8V; Input Voltage Max:14V; No. of Outputs:1Outputs; DC / DC Converter IC Case:WDFN; No. of Pins:10Pins; Output Current:3A; Output Voltage Min:-; RoHS Compliant: Yes

Download RT8509GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

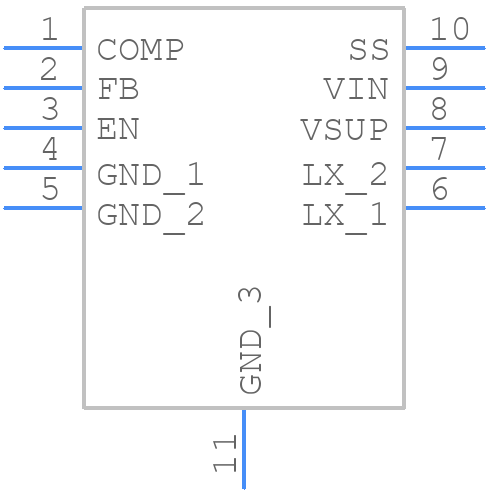

RT8509GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8509GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn11
click to zoom
3D Models
RT8509GQW - RICHTEK - 3D model - Small Outline No-lead - dfn11
click to zoom

RT8509GQW Details

  • Manufacturer Part Number:

    RT8509GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    WDFN3x3-10

  • Manufacturer Package Code:

    WDFN3x3-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-N10

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

RT8509GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
  • Monitor the input voltage, output current, and junction temperature to ensure they are within the specified limits. Use thermal design and layout techniques to keep the junction temperature below 125°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 2x the input voltage.
  • Use the EN pin to disable the device when not in use. Ensure the input voltage is removed or reduced to a minimum when the device is in standby mode. Use a low-quiescent-current LDO or a load switch to further reduce standby power consumption.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VOUT pin and have a voltage rating of at least 2x the output voltage.
