RT8511AGQWA - RICHTEK

Description: IC LED DRIVER RGLTR DIM 8WDFN

Download RT8511AGQWA Model

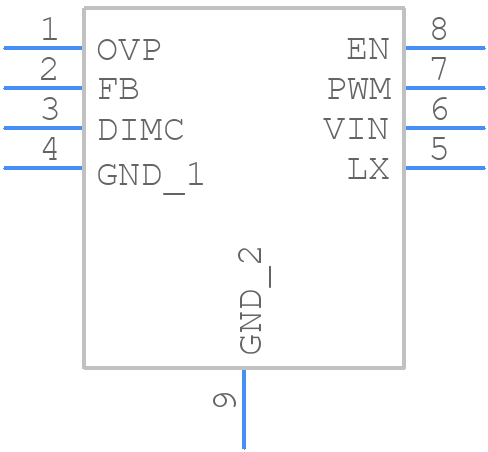

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT8511AGQWA - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN-8L 3x3
click to zoom
3D Models
RT8511AGQWA - RICHTEK  - 3D model - Small Outline No-lead - WDFN-8L 3x3
click to zoom

RT8511AGQWA Details

  • Manufacturer Part Number:

    RT8511AGQWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8WDFN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    30

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

RT8511AGQWA Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8511AGQWA's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is essential to follow the recommended component values and PCB layout guidelines. Additionally, the input capacitor should be placed close to the VIN pin, and the output capacitor should be placed close to the VOUT pin.
  • The maximum input voltage that can be applied to the RT8511AGQWA is 18V. Exceeding this voltage may damage the device.
  • The output voltage of the RT8511AGQWA can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The EN pin is an active-high enable input that allows the user to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled.
