RT8511BGQW - RICHTEK

Description: RICHTEK - RT8511BGQW - LED DRIVER, BOOST, 500KHZ, WDFN-8

Download RT8511BGQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

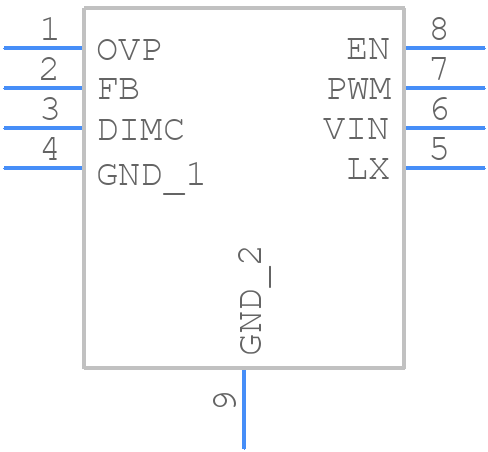

Symbol
RT8511BGQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT8511BGQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT8511BGQW
click to zoom
3D Models
RT8511BGQW - RICHTEK - 3D model - Small Outline No-lead - RT8511BGQW
click to zoom

RT8511BGQW Details

  • Manufacturer Part Number:

    RT8511BGQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN2x2-8

  • Package Description:

    WDFN-8

  • Manufacturer Package Code:

    WDFN2x2-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XDSO-N8

  • Length:

    2 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • fmax-Min:

    0.008 MHz

RT8511BGQW Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT8511BGQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure the output capacitor's ESR is less than 1 ohm. Additionally, place the output capacitor close to the RT8511BGQW and use a low-ESR capacitor to minimize oscillations.
  • The maximum input voltage that can be applied to the RT8511BGQW is 18V. Exceeding this voltage may damage the device.
  • The output voltage can be adjusted by changing the resistor divider network connected to the FB pin. Use the formula Vout = 0.8V x (R1 + R2) / R2 to calculate the required resistor values.
  • The maximum output current that the RT8511BGQW can deliver is 1.5A. Exceeding this current may cause the device to overheat or shut down.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8511BGQW Overview

Use the download button to access the RT8511BGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT851, or try a keyword search, such as Display Drivers
