RT8522-10-6M0 footprint, schematic symbol and 3D model by Schaffner

Symbol

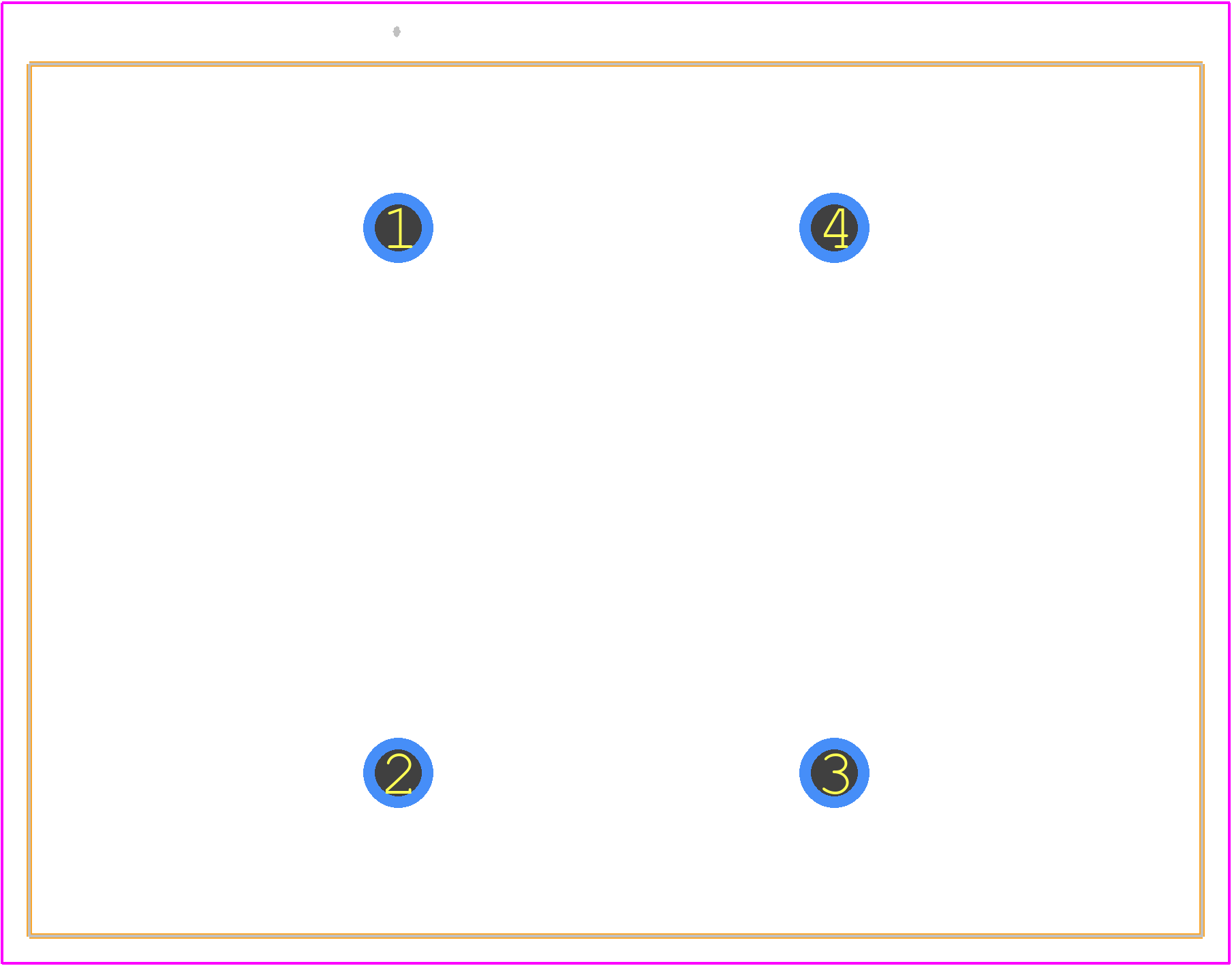

PCB Footprints

3D Models

RT8522-10-6M0 Details

Schaffner recommends a 4-layer PCB with a solid ground plane and a separate layer for the filter's return path to minimize electromagnetic interference (EMI).
Schaffner recommends mounting the filter on a metal plate or heat sink with a thermal interface material to dissipate heat. Ensure good airflow around the filter and avoid blocking airflow.
The RT8522-10-6M0 is rated for operation from -40°C to +85°C. However, derating may be necessary for high-temperature applications.
Yes, the RT8522-10-6M0 can be used in redundant or parallel configurations, but ensure proper synchronization and phase matching to avoid resonance and EMI issues.
Check for proper installation, ensure good airflow, and verify correct input voltage and current ratings. Use an oscilloscope to measure output voltage and current waveforms to identify noise issues.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RT8522-10-6M0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RT852, or try a keyword search, such as Mains Filters
