RT8522-20-3M0 footprint, schematic symbol and 3D model by Schaffner

Symbol

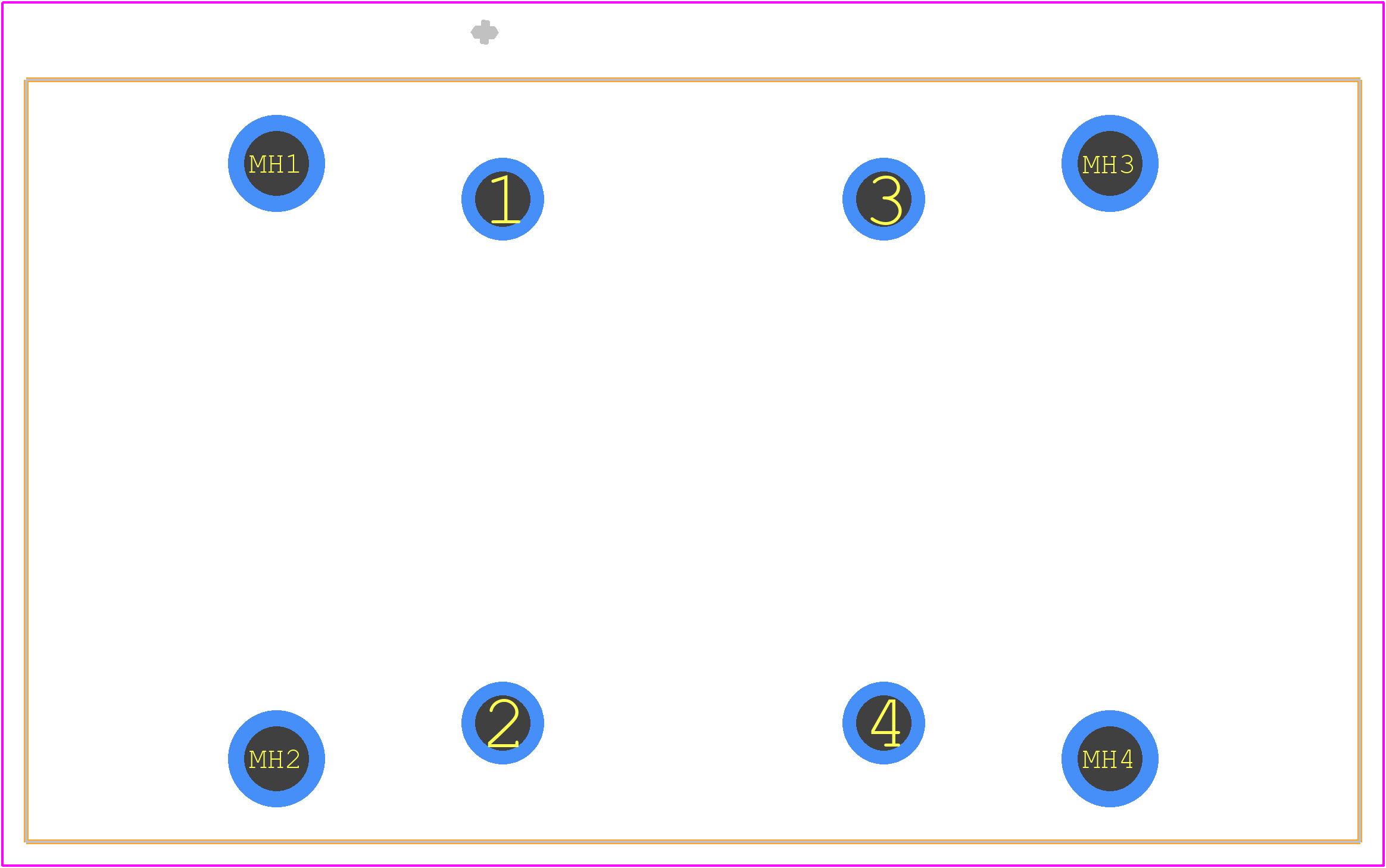

PCB Footprints

3D Models

RT8522-20-3M0 Details

Schaffner recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize electromagnetic interference (EMI).
Yes, the RT8522-20-3M0 can be used in a redundant configuration, but it requires additional external circuitry to ensure proper operation and fault detection. Schaffner recommends consulting with their application engineers for guidance on implementing redundancy.
The RT8522-20-3M0 can operate from -40°C to +85°C, but derating may be required for high-temperature applications. Consult the datasheet for specific derating curves.
Yes, the RT8522-20-3M0 is designed to withstand vibrations up to 10g, but additional mechanical fixation may be required for extreme vibration environments. Consult Schaffner's application notes for guidance on vibration testing and mitigation.
The recommended input voltage range for the RT8522-20-3M0 is 18V to 36V, but it can operate from 15V to 40V with reduced performance. Consult the datasheet for specific performance characteristics.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RT8522-20-3M0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RT852, or try a keyword search, such as Mains Filters
