RT8522-6-10M0 footprint, schematic symbol and 3D model by Schaffner

Symbol

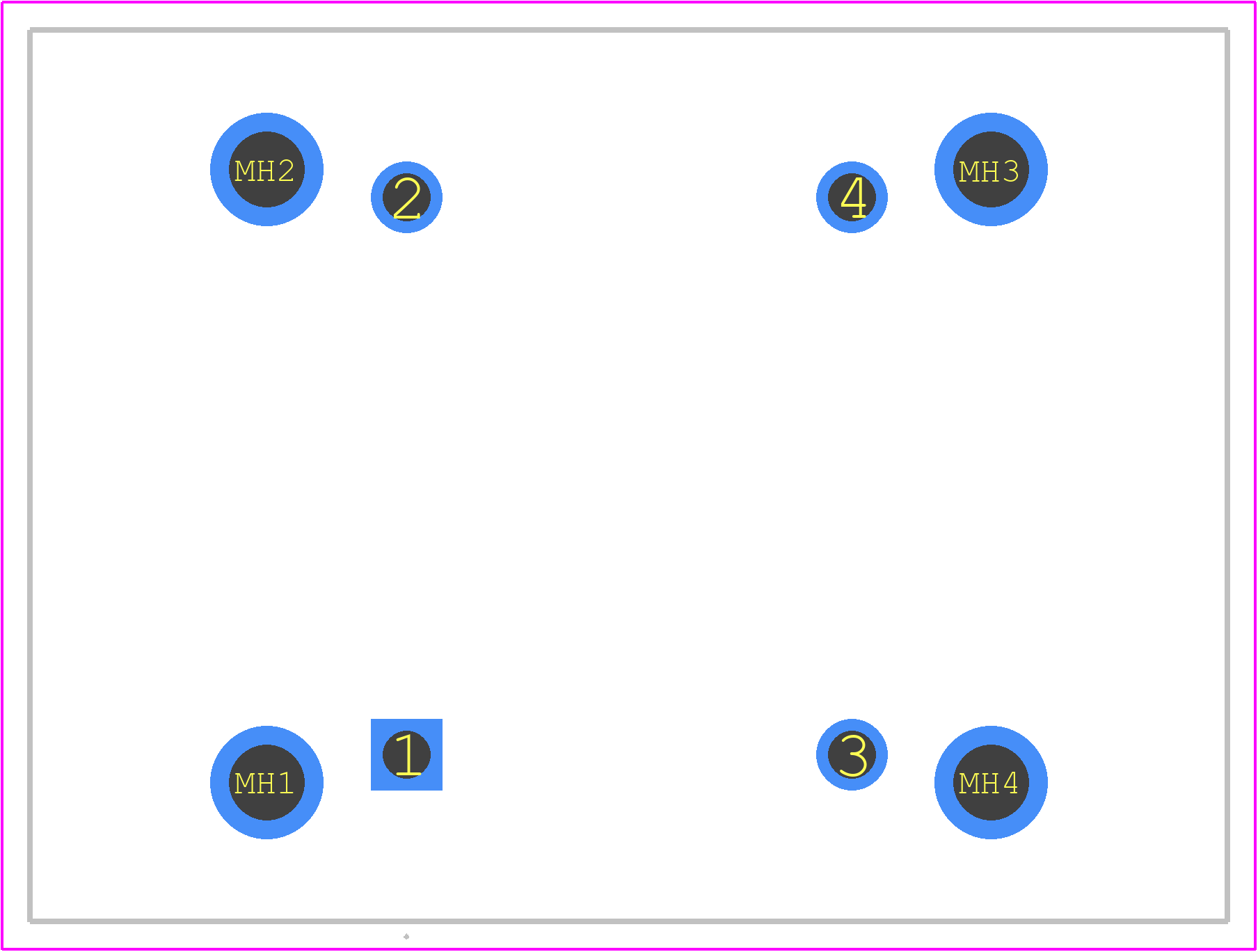

PCB Footprints

3D Models

RT8522-6-10M0 Details

Schaffner recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize electromagnetic interference (EMI).
Yes, the RT8522-6-10M0 can be used in a redundant configuration, but it requires additional external circuitry to ensure proper operation and fault detection.
The RT8522-6-10M0 can operate from -40°C to +85°C, but derating may be required for high-temperature applications.
Schaffner recommends following the guidelines in the IEC 61800-3 standard for EMC, and using proper shielding, filtering, and grounding techniques to minimize EMI.
Yes, the RT8522-6-10M0 can be used as an input filter in a DC-DC converter application, but additional components may be required to ensure proper operation.

Community Provided

System Verified

Community Approved

Use the download button to access the RT8522-6-10M0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RT852, or try a keyword search, such as Mains Filters
