RT8525GS - RICHTEK

Description: IC REG BOOST CTRLR DIM SOP-14

Download RT8525GS Model

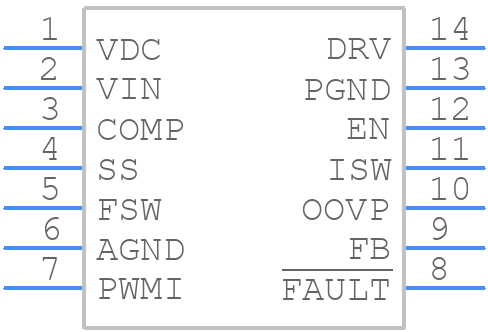

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT8525GS - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 14–Lead SOP
click to zoom
3D Models
RT8525GS - RICHTEK  - 3D model - Small Outline Packages - 14–Lead SOP
click to zoom

RT8525GS Details

  • Manufacturer Part Number:

    RT8525GS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP-14

  • Manufacturer Package Code:

    SOP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G14

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

RT8525GS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
  • Ensure that the output capacitor is within the recommended range (22uF to 47uF), and the input capacitor is at least 10uF. Also, keep the feedback resistors (R1 and R2) within the recommended range (1kΩ to 10kΩ).
  • The RT8525GS can handle up to 18V input voltage, but it's recommended to keep it below 15V for optimal performance and reliability.
  • The output voltage (Vout) can be calculated using the formula: Vout = Vref x (1 + R2/R1), where Vref is the internal reference voltage (1.25V) and R1 and R2 are the feedback resistors.
  • The RT8525GS can provide up to 2A of output current, but it's recommended to keep it below 1.5A for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT8525GS Overview

Use the download button to access the RT8525GS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT852, or try a keyword search, such as Switching Regulator or Controllers
