Schaffner recommends a symmetrical PCB layout with a solid ground plane, and the use of vias to connect the filter's ground pins to the ground plane. Additionally, the input and output traces should be kept short and away from each other to minimize electromagnetic interference.
The RT8532-16-3M0 is rated for operation up to 80°C, but derating may be necessary for higher temperatures. Schaffner recommends consulting their application notes for high-temperature operation and performing thermal analysis to ensure the filter's reliability.
The RT8532-16-3M0 meets various safety certifications, including UL, ENEC, and CQC. However, the final product must also meet the relevant safety standards. Engineers should consult Schaffner's safety certification documents and ensure that their design meets the necessary requirements.
Schaffner recommends a torque of 0.5 Nm to 1.5 Nm for the screw terminals, depending on the wire size and type. Over-tightening can damage the terminals, while under-tightening can lead to poor connections.
Yes, the RT8532-16-3M0 can be used in a redundant or parallel configuration to achieve higher power ratings or improved reliability. However, engineers should consult Schaffner's application notes and perform thorough analysis to ensure the filters are properly synchronized and configured.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT8532-16-3M0 Overview

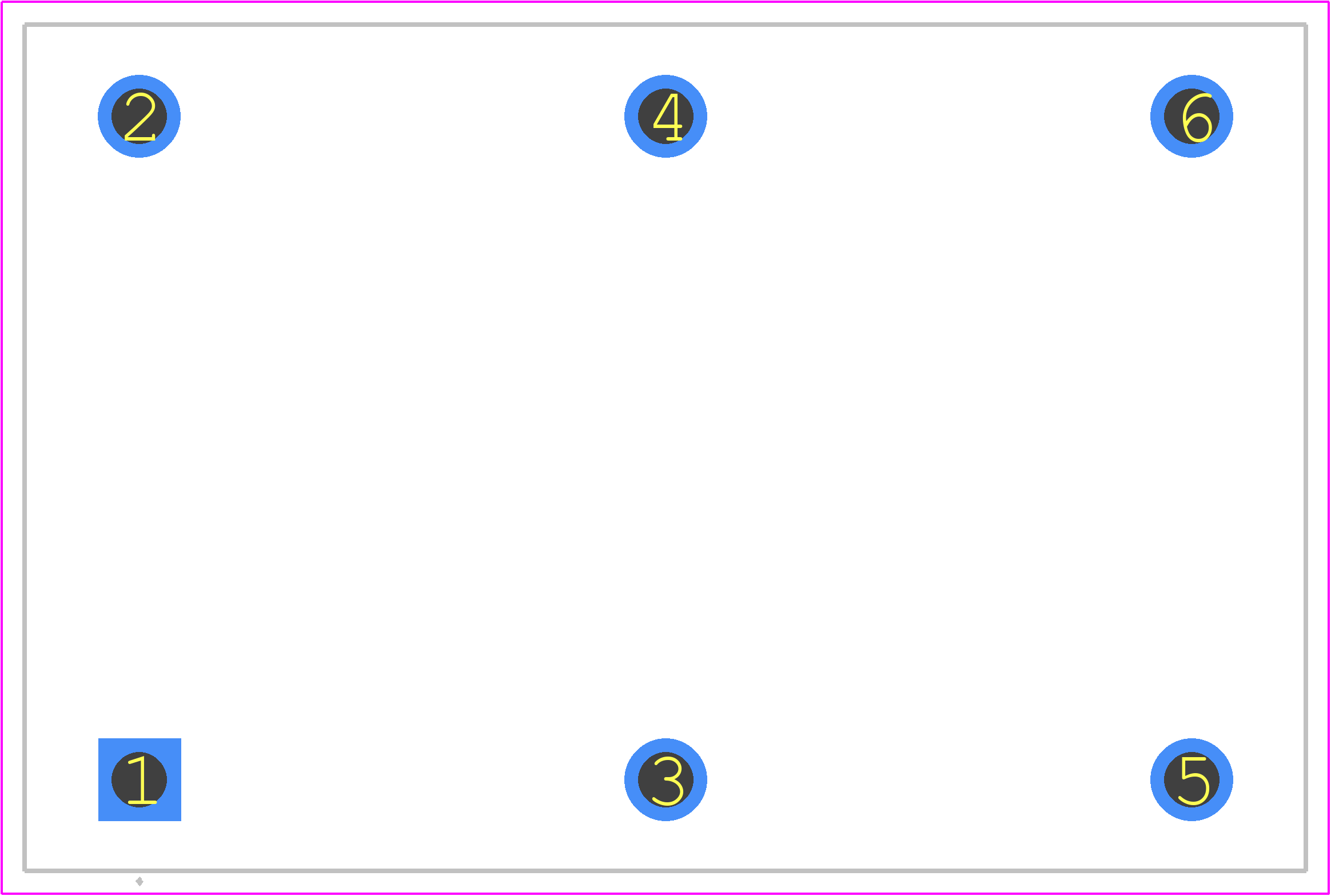

Use the download button to access the RT8532-16-3M0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT853,
or try a keyword search, such as Mains Filters
