RT9081A-10GQZA footprint, schematic symbol and 3D model by RICHTEK

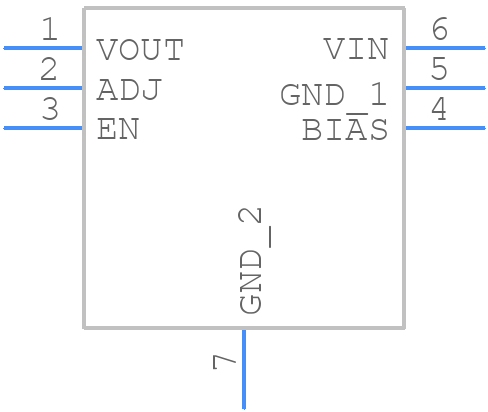

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RT9081A-10GQZA
Part Number RT9081A-10GQZA
Manufacturer RICHTEK
Pin Count 7
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - RT9081A-10GQZA
Released Date Sep 11, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RT9081A-10GQZA Details

Manufacturer Part Number:
RT9081A-10GQZA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
ZADFN1.2x1.2-6
Manufacturer Package Code:
ZADFN1.2x1.2-6
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Richtek Technology Corp
YTEOL:
7.3
Adjustability:
FIXED
Dropout Voltage1-Max:
0.25 V
Dropout Voltage1-Nom:
0.14 V
Input Voltage Absolute-Max:
6 V
Input Voltage-Max:
5.5 V
Input Voltage-Min:
1.3 V
JESD-30 Code:
S-PDSO-N6
Length:
1.2 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.5 A
Output Voltage1-Max:
1.015 V
Output Voltage1-Min:
0.985 V
Output Voltage1-Nom:
1 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC6,.05,16
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.32 mm
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
DUAL
Voltage Tolerance-Max:
1.5%
Width:
1.2 mm

RT9081A-10GQZA Frequently Asked Questions (FAQs)

Richtek provides a recommended PCB layout guide in their application note AND9231, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
Richtek recommends using their online filter design tool, which takes into account the specific requirements of the RT9081A-10GQZA and the target application. The tool provides a suggested output filter design, including component values and layout recommendations.
While the datasheet specifies a maximum input voltage of 5.5V, the allowed input voltage ripple is not explicitly stated. According to Richtek's application engineers, the recommended input voltage ripple is ≤50mV to ensure stable operation and prevent damage to the device.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the device can be used in high-temperature environments with some limitations. Richtek recommends derating the output current and voltage according to the temperature derating curve provided in the datasheet to ensure reliable operation.
Richtek provides a troubleshooting guide in their application note AND9232, which covers common issues and their possible causes, as well as recommended solutions and debugging techniques.

Trust Checks

Community Provided

System Verified

Community Approved

RT9081A-10GQZA Overview

Use the download button to access the RT9081A-10GQZA schematic symbol, PCB footprint, and 3D model.
