Richtek provides a recommended PCB layout in their application note ANI08, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output current, and ripple current requirements. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the maximum input voltage. X5R or X7R ceramic capacitors are suitable options.
According to Richtek's application note ANI07, the maximum output current derating for high ambient temperatures is 0.5A/°C above 50°C. This means that for every 1°C increase in ambient temperature above 50°C, the maximum output current should be reduced by 0.5A to ensure reliable operation.
Yes, the RT9081A-1BGQZA(2) is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow Richtek's guidelines for PCB design, component selection, and testing to ensure compliance with the required standards.
Oscillations or instability issues can be caused by inadequate input decoupling, incorrect output capacitor selection, or poor PCB layout. Richtek recommends following their application notes and design guidelines to prevent these issues. If problems persist, consult Richtek's technical support or a qualified engineer for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RT9081A-1BGQZA(2) Overview

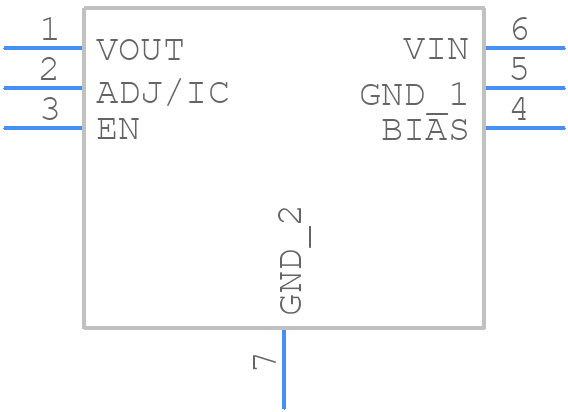

Use the download button to access the RT9081A-1BGQZA(2) schematic symbol, PCB footprint, and 3D model.
