RT9081AGQZA(2) - RICHTEK

Description: RICHTEK - RT9081AGQZA(2) - LDO, ADJ, 0.5V TO 3.6V, 0.5A, DFN-6

Download RT9081AGQZA(2) Model

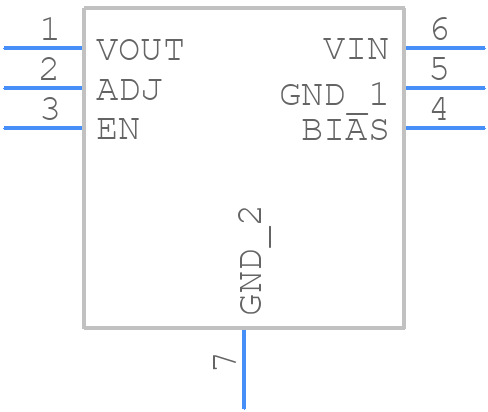

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT9081AGQZA(2) - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - Z-Type_6L_ADFN_1.2x1.2
click to zoom
3D Models
RT9081AGQZA(2) - RICHTEK  - 3D model - Small Outline No-lead - Z-Type_6L_ADFN_1.2x1.2
click to zoom

RT9081AGQZA(2) Details

  • Manufacturer Part Number:

    RT9081AGQZA(2)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ZADFN-6L, 6-PIN

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.25 V

  • Dropout Voltage1-Nom:

    0.14 V

  • JESD-30 Code:

    S-PDSO-N6

  • Length:

    1.2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.05,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.32 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    1.2 mm

RT9081AGQZA(2) Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
  • Ensure that the output capacitor is within the recommended range, and the feedback resistors are properly selected. Also, avoid using long, thin traces for the feedback loop, and keep the feedback components close to the IC.
  • The maximum input voltage is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. Stick to the recommended inductor values and types for optimal results.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the IC, and avoid blocking the airflow with components or PCB features.
