RT9259AGS - RICHTEK

Description: IC REG DL BUCK/LINEAR SYNC 14SOP

Download RT9259AGS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

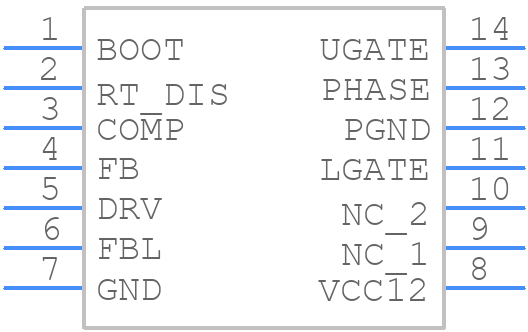

Symbol
RT9259AGS - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9259AGS - RICHTEK PCB footprint - Small Outline Packages - Small Outline Packages - 14–Lead SOP
click to zoom
3D Models
RT9259AGS - RICHTEK - 3D model - Small Outline Packages - 14–Lead SOP
click to zoom

RT9259AGS Details

  • Manufacturer Part Number:

    RT9259AGS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOP-14

  • Manufacturer Package Code:

    14SOP

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    0

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • JESD-30 Code:

    R-PDSO-G14

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

RT9259AGS Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI-45, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The output capacitor selection depends on the specific application requirements. Richtek recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. Additionally, the capacitor should be placed close to the IC to minimize parasitic inductance.
  • Although the datasheet specifies a maximum input voltage of 18V, Richtek recommends limiting the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
  • Richtek recommends using an external OVP circuit, such as a voltage supervisor IC, to detect overvoltage conditions and shut down the RT9259AGS. The OVP threshold should be set to around 1.5x the nominal input voltage.
  • Richtek recommends using a ceramic or film capacitor with a value between 1uF to 10uF, and a voltage rating of at least 2x the input voltage. The input capacitor should be placed close to the IC to minimize parasitic inductance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9259AGS Overview

Use the download button to access the RT9259AGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT925, or try a keyword search, such as Switching Regulator or Controllers
