RT9426GQW - RICHTEK

Description: IC BATT PROT LI-ION 1CELL 12WDFN

Download RT9426GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

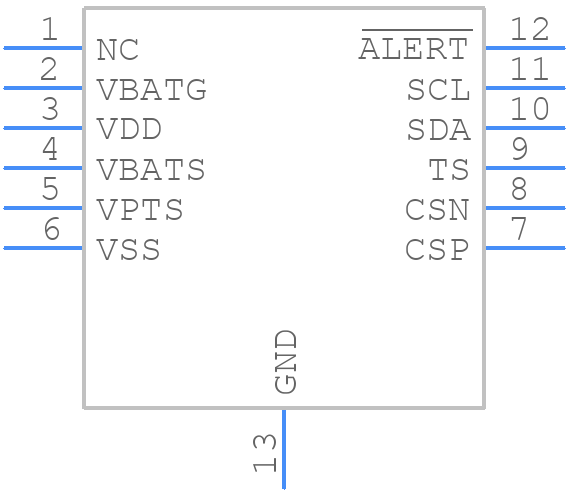

Symbol
RT9426GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9426GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 12L DFN 2.5x4 Package
click to zoom
3D Models
RT9426GQW - RICHTEK - 3D model - Small Outline No-lead - W-Type 12L DFN 2.5x4 Package
click to zoom

RT9426GQW Details

  • Manufacturer Part Number:

    RT9426GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N12

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.57V

  • Width:

    2.5 mm

RT9426GQW Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI42, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Richtek recommends using an inductor with a minimum inductance of 1.5μH and a maximum DCR of 100mΩ. The output inductor should also be rated for the maximum output current and have a suitable saturation current rating. Refer to Richtek's application note ANI41 for more information.
  • The maximum junction temperature (Tj) for the RT9426GQW is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
  • While the RT9426GQW can operate up to 150°C, it's not recommended for use in high-temperature environments above 125°C without proper derating and thermal management. Consult Richtek's application note ANI43 for guidance on high-temperature operation.
  • Richtek provides a troubleshooting guide in their application note ANI44, which covers common issues and their solutions, including oscillation, instability, and output voltage regulation problems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9426GQW Overview

Use the download button to access the RT9426GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT942, or try a keyword search, such as Power Management Circuits
