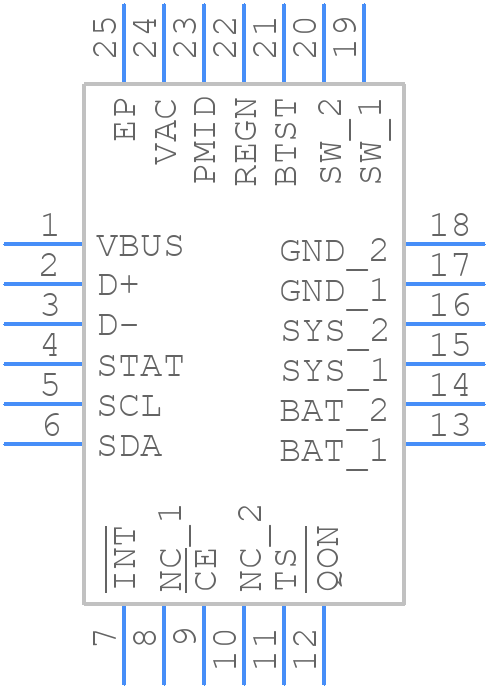

RT9471DGQW - RICHTEK

RT9471DGQW Details

• Manufacturer Part Number:

  RT9471DGQW

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WQFN-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Richtek Technology Corp

• YTEOL:

  7

• Additional Feature:

  THERMAL SHUTDOWN:160C

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  LINEAR BATTERY CHARGER

• JESD-30 Code:

  S-XQCC-N24

• Length:

  4 mm

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  7 mA

• Supply Voltage-Max (Vsup):

  13.5 V

• Supply Voltage-Min (Vsup):

  3.9 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  4.7

• Width:

  4 mm
