RT9480GQW - RICHTEK

Description: Easy to Use Power Bank Solution Integrated Chip with Two Ports Output

Download RT9480GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

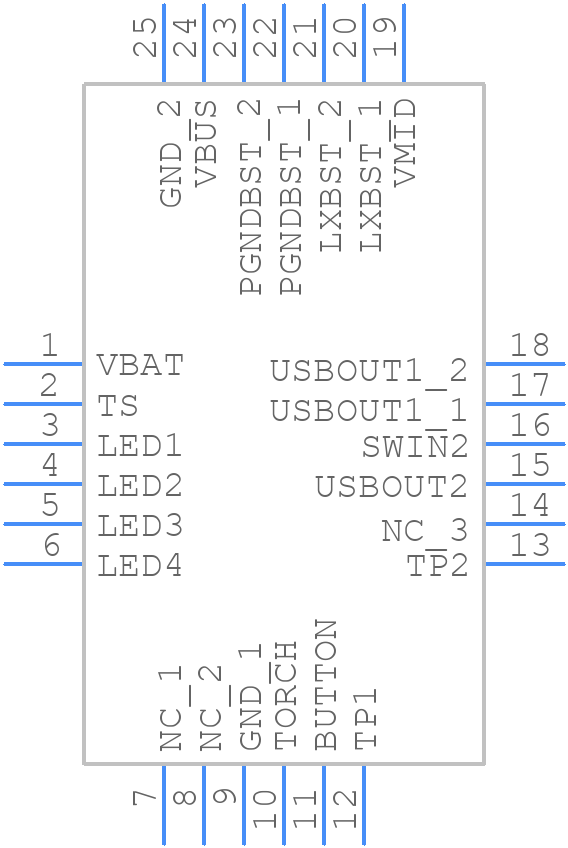

Symbol
RT9480GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9480GQW - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-24
click to zoom
3D Models
RT9480GQW - RICHTEK - 3D model - Quad Flat No-Lead - QFN-24
click to zoom

RT9480GQW Details

  • Manufacturer Part Number:

    RT9480GQW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    WQFN4x4-24

  • Manufacturer Package Code:

    WQFN4x4-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    3

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

RT9480GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
  • Ensure that the output capacitor is within the recommended range (22uF to 47uF), and the input capacitor is at least 10uF. Also, keep the feedback resistors (R1 and R2) within the recommended range (1kΩ to 10kΩ).
  • The RT9480GQW can handle up to 28V input voltage, but it's recommended to keep it below 24V for optimal performance and reliability.
  • The output voltage (Vout) can be calculated using the formula: Vout = Vref x (1 + R2/R1), where Vref is the internal reference voltage (1.25V) and R1 and R2 are the feedback resistors.
  • The RT9480GQW can provide up to 3A of output current, but it's recommended to keep it below 2.5A for optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9480GQW Overview

Use the download button to access the RT9480GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT948, or try a keyword search, such as Power Management Circuits
