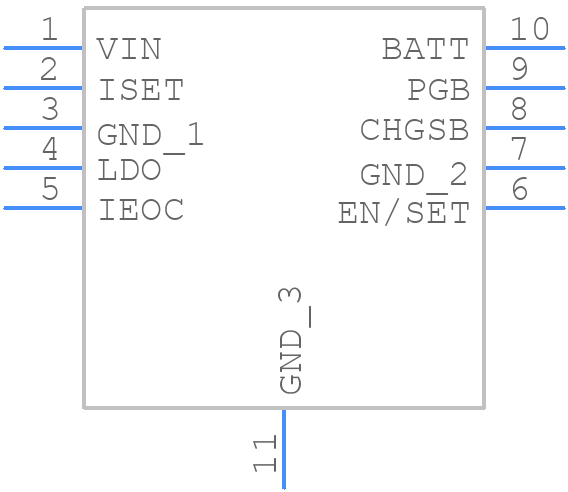

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RT9524GQW
- Part Number RT9524GQW
- Manufacturer RICHTEK
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 10L DFN 3x2 Package
- Released Date Dec 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RT9524GQW Details
-
Manufacturer Part Number:
RT9524GQW
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
WDFN3x2-10
-
Manufacturer Package Code:
WDFN3x2-10
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
YTEOL:
6
-
Analog IC - Other Type:
LINEAR BATTERY CHARGER
RT9524GQW Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9524GQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
-
Use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Also, ensure the input voltage is stable and within the recommended range, and the output voltage is set correctly using the FB pin.
-
The RT9524GQW can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
-
Use an external current sense resistor and a fuse or a PTC thermistor to protect the device from overcurrent. Also, ensure good airflow and a heat sink if necessary to prevent overheating.
-
The RT9524GQW is rated for operation up to 85°C, but its performance and reliability may degrade at higher temperatures. Consider using a heat sink or a thermal interface material to improve heat dissipation.
Trust Checks
Community Provided
System Verified
Community Approved
RT9524GQW Overview
Use the download button to access the RT9524GQW schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RT952,
or try a keyword search, such as Power Management Circuits
