RT9525GQW - RICHTEK

Description:  28V Maximum Rating for VIN Power  Selectable Power Current Limit (0.1A / 0.5A / 1.5A)  Integrated Power MOSFETs  Auto Power Path Management (APPM)  Programmable Charging Current Timer and Safe Charge Timer  Under Voltage Protection  Over Voltage Protection  Power Good and Charger Status Indicator  Optimized Charge Rate via Thermal Feedback  16-Lead WQFN Package  RoHS Compliant and Halogen Free

Download RT9525GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

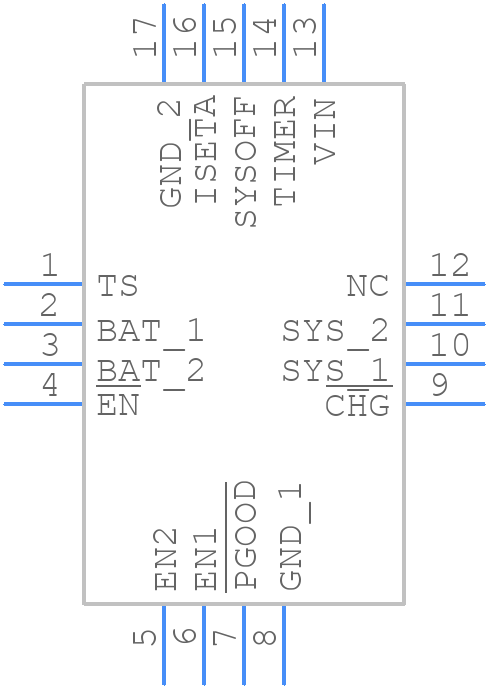

RT9525GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9525GQW - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - W-Type 16L QFN 3x3 _2021
click to zoom
3D Models
RT9525GQW - RICHTEK - 3D model - Quad Flat No-Lead - W-Type 16L QFN 3x3 _2021
click to zoom

RT9525GQW Details

  • Manufacturer Part Number:

    RT9525GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WQFN3x3-16

  • Package Description:

    QCCN, LCC16,.12SQ,20

  • Manufacturer Package Code:

    WQFN3x3-16

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    6

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

RT9525GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9525GQW should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic). Also, minimize the distance between the RT9525GQW and the output capacitor.
  • The maximum safe operating temperature for the RT9525GQW is 125°C. Exceeding this temperature may reduce the device's reliability and lifespan.
  • Yes, but ensure that the device is properly heat-sinked and the PCB is designed to handle high currents. The RT9525GQW can deliver up to 5A of output current, but excessive current may reduce the device's lifespan.
  • Check the input voltage, output capacitor value and type, and PCB layout. Ensure that the RT9525GQW is properly decoupled and that the output capacitor is of sufficient value. Also, verify that the device is not overheating.
