RT9527GQW - RICHTEK

Description: RICHTEK - RT9527GQW - Battery Charger, 1 Cell of Li-Ion Battery, 6V Input, 4.2V/600mA Charge, WDFN-8

Download RT9527GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

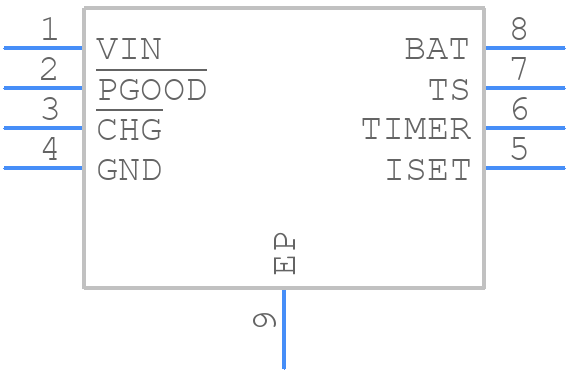

RT9527GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9527GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 8L DFN 2x2 Packagess
click to zoom
3D Models
RT9527GQW - RICHTEK - 3D model - Small Outline No-lead - W-Type 8L DFN 2x2 Packagess
click to zoom

RT9527GQW Details

  • Manufacturer Part Number:

    RT9527GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-8

  • Manufacturer Package Code:

    8WDFN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    6

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-N8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL
