RT9532GQW - RICHTEK

Description: IC BATT CHRGR LI-ION SGL 10WQFN

Download RT9532GQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

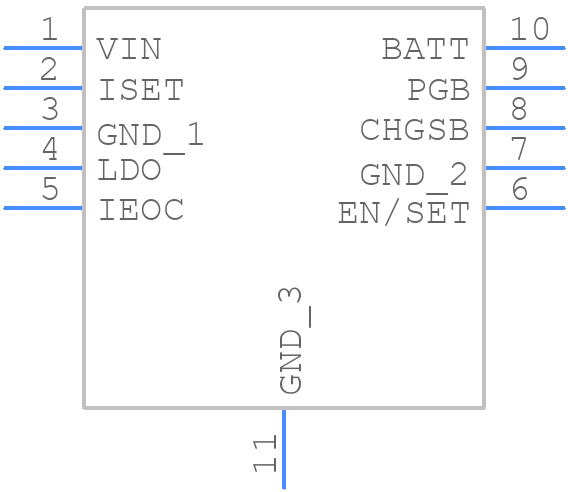

Symbol
RT9532GQW - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9532GQW - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - RT9532GQW-+
click to zoom
3D Models
RT9532GQW - RICHTEK - 3D model - Small Outline No-lead - RT9532GQW-+
click to zoom

RT9532GQW Details

  • Manufacturer Part Number:

    RT9532GQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-N10

  • Length:

    3 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    6.2 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.3V

  • Width:

    2 mm

RT9532GQW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The RT9532GQW's thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to decouple the input with a 1uF capacitor.
  • The maximum input voltage that can be applied to the RT9532GQW is 18V, but it is recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • The RT9532GQW has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it is recommended to add external overcurrent protection and thermal monitoring to ensure the device operates within safe limits.
  • A low-ESR ceramic capacitor with a value of 1uF to 10uF is recommended for input decoupling. The capacitor should be placed as close to the VIN pin as possible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9532GQW Overview

Use the download button to access the RT9532GQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT953, or try a keyword search, such as Power Management Circuits
