RT9624DGQWA - RICHTEK

Description: High-Side or Low-Side Gate Driver IC Non-Inverting 8-WDFN-SL (2x2)

Download RT9624DGQWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

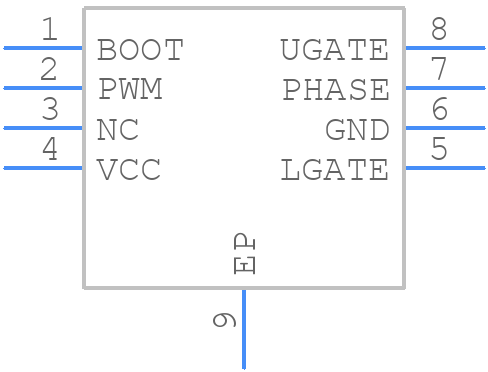

Symbol
RT9624DGQWA - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RT9624DGQWA - RICHTEK PCB footprint - Small Outline No-lead - Small Outline No-lead - W-Type 8SL DFN 2x2 Package-2025
click to zoom
3D Models
RT9624DGQWA - RICHTEK - 3D model - Small Outline No-lead - W-Type 8SL DFN 2x2 Package-2025
click to zoom

RT9624DGQWA Details

  • Manufacturer Part Number:

    RT9624DGQWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.022 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    3 mm

RT9624DGQWA Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note AND9231, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Richtek recommends using an inductor with a minimum inductance of 1.5μH and a maximum DCR of 100mΩ. The output inductor should also be rated for the maximum output current and have a suitable saturation current rating. Refer to the Richtek application note AND9231 for more details.
  • The maximum junction temperature (Tj) for the RT9624DGQW is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
  • While the RT9624DGQW can operate up to 150°C, it's not recommended for use in high-temperature environments above 125°C without proper derating and thermal management. Consult with Richtek's application engineers for guidance on high-temperature applications.
  • Richtek provides a troubleshooting guide in their application note AND9231, which covers common issues and their solutions. Additionally, consult the datasheet and contact Richtek's technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9624DGQWA Overview

Use the download button to access the RT9624DGQWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT962, or try a keyword search, such as MOSFET Drivers
