- Part Number RT9728BLGQW
- Manufacturer RICHTEK
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - 6L DFN 2x2_
- Released Date Oct 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RT9728BLGQW Details
-
Manufacturer Part Number:
RT9728BLGQW
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
WDFN-6
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Richtek Technology Corp
-
YTEOL:
7
-
Additional Feature:
CURRENT LIMIT: 1.295A; THERMAL SHUTDOWN:160C; ADJUSTABLE CURRENT LIMIT
-
Adjustable Threshold:
YES
RT9728BLGQW Frequently Asked Questions (FAQs)
-
Richtek provides a recommended PCB layout in their application note AND9231, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. A X5R or X7R dielectric capacitor is recommended for its low temperature coefficient and high reliability.
-
Although the datasheet specifies a maximum input voltage of 18V, Richtek recommends limiting the input voltage to 15V to ensure reliable operation and prevent damage to the internal components.
-
The RT9728BLGQW has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. Richtek provides a calculation formula for the resistor value in their datasheet.
-
Richtek recommends using a ceramic capacitor with a value of 1uF to 10uF and a voltage rating of at least 1.5 times the input voltage. A X5R or X7R dielectric capacitor is recommended for its low temperature coefficient and high reliability.
Trust Checks
Community Provided
System Verified
Community Approved
RT9728BLGQW Overview

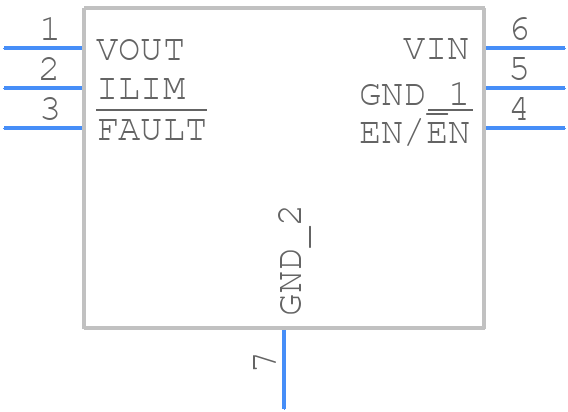

Use the download button to access the RT9728BLGQW schematic symbol, PCB footprint, and 3D model.
