RT9740AGQW - RICHTEK

Description: Power Switch ICs - Power Distribution Dual Channel, Ultra-Low Resistance Load Switch 18 mOhms 800 mV to 5.5 V SMD/SMT

Download RT9740AGQW Model

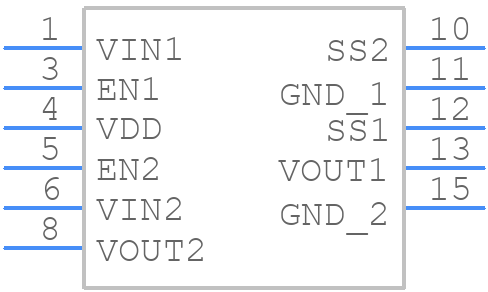

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RT9740AGQW - RICHTEK PCB footprint - Other - Other - WDFN3x2-14T_2025
click to zoom
3D Models
RT9740AGQW - RICHTEK  - 3D model - Other - WDFN3x2-14T_2025
click to zoom

RT9740AGQW Details

  • Manufacturer Part Number:

    RT9740AGQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-N14

  • Length:

    3 mm

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

RT9740AGQW Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note AND9234, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. A X5R or X7R dielectric capacitor is recommended for its low impedance and high reliability.
  • The maximum junction temperature (Tj) for the RT9740AGQW is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation and to prevent thermal shutdown.
  • Richtek recommends using an external OVP circuit, such as a voltage supervisor IC or a zener diode, to detect overvoltage conditions and shut down the regulator. The OVP threshold should be set to a voltage slightly higher than the maximum rated input voltage.
  • Richtek recommends using a ceramic or film capacitor with a minimum capacitance of 1uF and a voltage rating of at least 1.5 times the maximum input voltage. A X5R or X7R dielectric capacitor is recommended for its low impedance and high reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RT9740AGQW Overview

Use the download button to access the RT9740AGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RT974, or try a keyword search, such as Power Management Circuits
