- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RTD14024
- Part Number RTD14024
- Manufacturer TE Connectivity
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - RTD14024-1
- Released Date Mar 10, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RTD14024 Details
-
Manufacturer Part Number:
RTD14024
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.41.00.50
-
Manufacturer:
TE Connectivity
-
Body Breadth:
12.7 mm
-
Body Height:
15.7 mm
-
Body Length or Diameter:
29 mm
-
Coil Current(DC)-Max:
0.017 A
RTD14024 Frequently Asked Questions (FAQs)
-
TE Connectivity recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
-
To ensure reliable operation in high-vibration environments, TE Connectivity recommends using a secure mounting method, such as screwing or clipping the device to the PCB, and ensuring that the PCB is properly secured to the system.
-
While the datasheet specifies an operating temperature range of -40°C to 150°C, TE Connectivity recommends derating the device to 125°C for continuous operation to ensure reliability and longevity.
-
Yes, the RTD14024 is designed to operate in humid environments, but it's essential to follow proper conformal coating and sealing procedures to prevent moisture ingress and ensure reliable operation.
-
To troubleshoot thermal issues, TE Connectivity recommends monitoring the device's temperature using a thermocouple or thermal imaging camera, and checking for proper thermal interface material application, PCB thermal design, and system airflow.
Trust Checks
Expert Contribution
System Verified
Community Approved
RTD14024 Overview

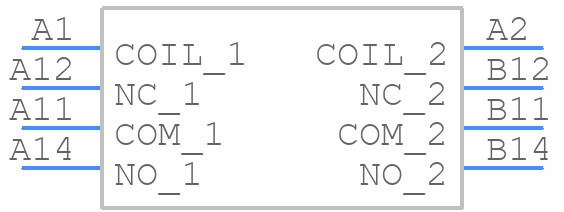

Use the download button to access the RTD14024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTD14,
or try a keyword search, such as Power/Signal Relays
