RTL8111-LF - Realtek

RTL8111-LF Details

• Manufacturer Part Number:

  RTL8111-LF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active Unconfirmed

• Part Package Code:

  QFP

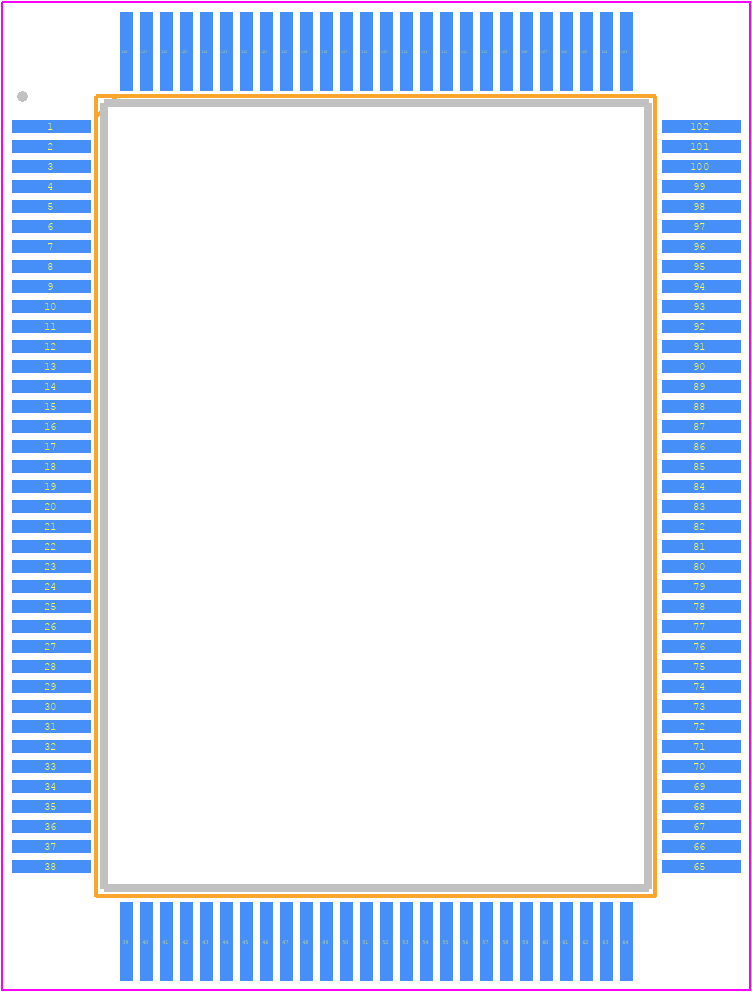

• Package Description:

  14 X 20 MM, LEAD FREE, QFP-128

• Pin Count:

  128

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Realtek Semiconductor

• YTEOL:

  2

• Additional Feature:

  ALSO REQUIRES 3.3 V AND 2 .1 V TYP SUPPLY

• Clock Frequency-Max:

  25 MHz

• Data Transfer Rate-Max:

  12.5 MBps

• Drive Interface Standard:

  IEEE 802.3; IEEE 802.3A; IEEE

• JESD-30 Code:

  R-PQFP-G128

• Length:

  20 mm

• Number of Terminals:

  128

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK, FINE PITCH

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
