RTL8111F-VB-CG - Realtek

Description: RTL8111F Series 3.46 V 25 MHz Integrated Gigabit Ethernet Controller - QFN-48

Download RTL8111F-VB-CG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

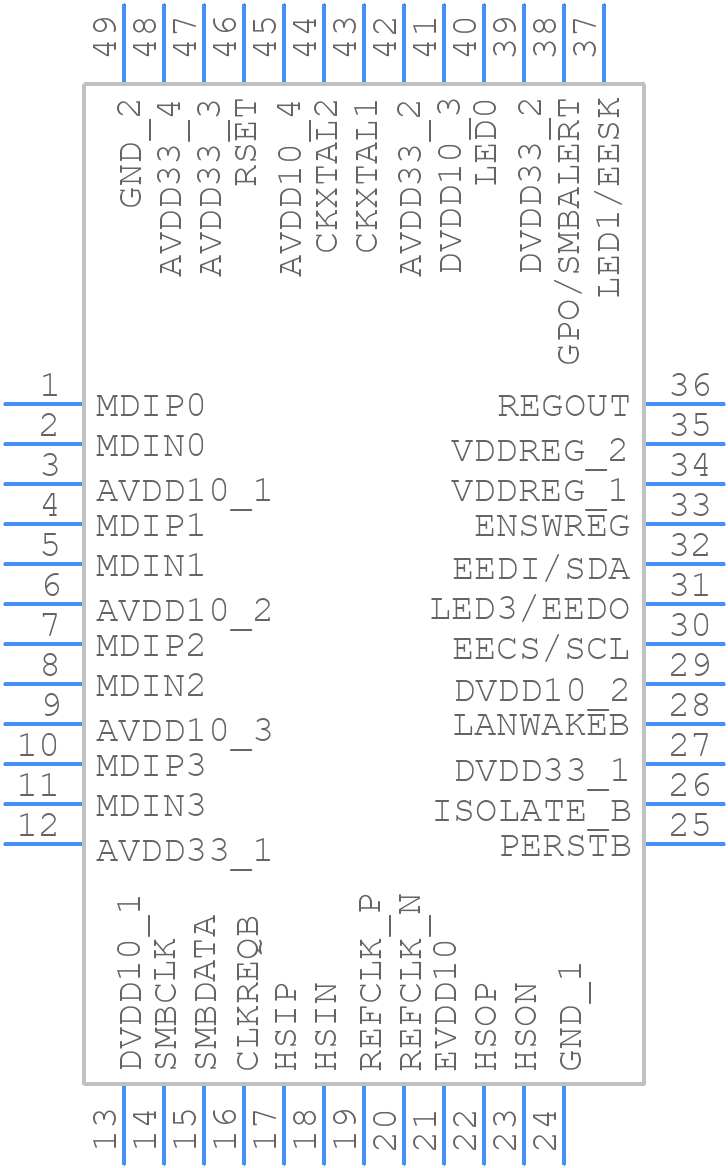

Symbol
RTL8111F-VB-CG - Realtek - PCB symbol
click to zoom
PCB Footprints
RTL8111F-VB-CG - Realtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 QFN GREE
click to zoom
3D Models
RTL8111F-VB-CG - Realtek - 3D model - Quad Flat No-Lead - 48 QFN GREE
click to zoom

RTL8111F-VB-CG Details

  • Manufacturer Part Number:

    RTL8111F-VB-CG

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-48

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Realtek Semiconductor

  • YTEOL:

    0

  • Boundary Scan:

    NO

  • Bus Compatibility:

    SMBUS; SPI

  • Clock Frequency-Max:

    25 MHz

  • Communication Protocol:

    SYNC, BYTE

  • Data Encoding/Decoding Method:

    BIPH-LEVEL(MANCHESTER)

  • Data Transfer Rate-Max:

    312.5 MBps

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Low Power Mode:

    YES

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

RTL8111F-VB-CG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the RTL8111F-VB-CG is 0°C to 70°C (commercial temperature range) and -40°C to 85°C (industrial temperature range).
  • The RTL8111F-VB-CG can be configured for half-duplex or full-duplex mode through the Duplex Mode register (Register 0x10). Setting bit 7 of this register to 0 enables half-duplex mode, while setting it to 1 enables full-duplex mode.
  • The maximum packet size supported by the RTL8111F-VB-CG is 16384 bytes.
  • VLAN tagging can be implemented on the RTL8111F-VB-CG by setting the VLAN Tag register (Register 0x14) and configuring the VLAN ID and priority through the VLAN Control register (Register 0x15).
  • The power consumption of the RTL8111F-VB-CG varies depending on the mode: 350mA in normal operation, 150mA in low-power mode, and 10mA in power-down mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RTL8111F-VB-CG Overview

Use the download button to access the RTL8111F-VB-CG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTL81, or try a keyword search, such as Serial IO/Communication Controllers
