RTL8111H-CG - Realtek

Description: INTEGRATED 10/100/1000M ETHERNET CONTROLLER FOR PCI EXPRESS APPLICATIONS

Download RTL8111H-CG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

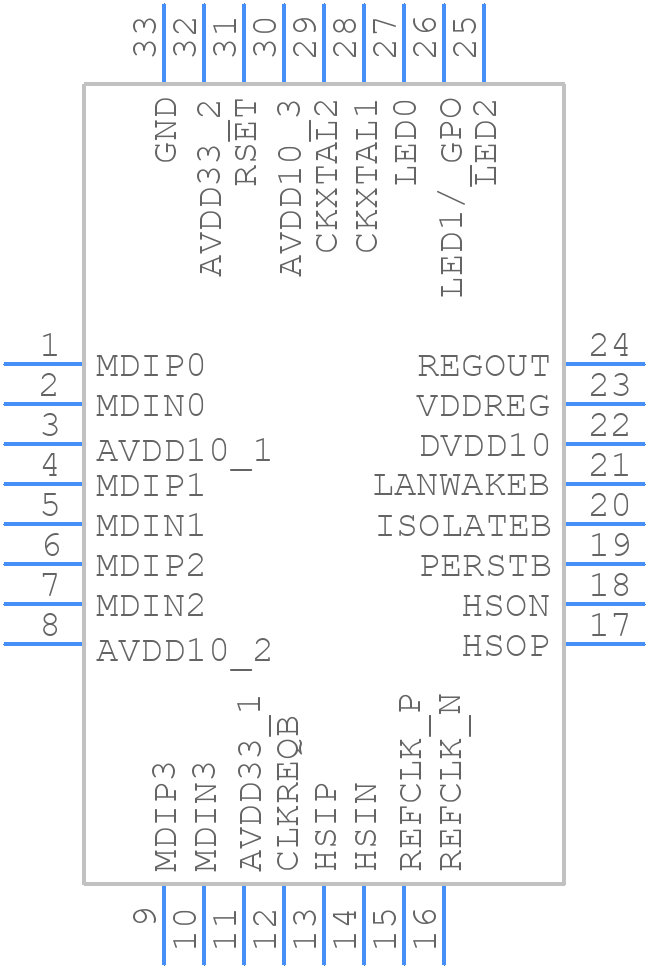

RTL8111H-CG - Realtek - PCB symbol
click to zoom
PCB Footprints
RTL8111H-CG - Realtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin QFN
click to zoom
3D Models
RTL8111H-CG - Realtek - 3D model - Quad Flat No-Lead - 32-Pin QFN
click to zoom

RTL8111H-CG Details

  • Manufacturer Part Number:

    RTL8111H-CG

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Realtek Semiconductor

  • YTEOL:

    6

  • Boundary Scan:

    NO

  • Bus Compatibility:

    PCI

  • Clock Frequency-Max:

    48 MHz

  • Data Transfer Rate-Max:

    312.5 MBps

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

RTL8111H-CG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the RTL8111H-CG is 0°C to 70°C (commercial temperature range) and -40°C to 85°C (industrial temperature range).
  • To configure the RTL8111H-CG for WOL, you need to set the WOL enable bit in the PMCSR (Power Management Control and Status Register) and configure the WOL pattern in the WOLPATR (Wake-on-LAN Pattern Register). You may also need to configure the system to send a magic packet to wake up the device.
  • The RTL8111H-CG supports a maximum cable length of 100 meters for 1000BASE-T and 100BASE-TX, and 200 meters for 10BASE-T.
  • The RTL8111H-CG supports various power management modes, including ACPI, PCI-PM, and ASPM. You can implement power management by configuring the PMCSR and PMCSR2 registers, and using the PCI-PM and ASPM protocols to control power states.
  • The maximum power consumption of the RTL8111H-CG is approximately 1.2W in the active state and 100mW in the low power state.
