RTL8306SD-GR - Realtek

RTL8306SD-GR Details

• Manufacturer Part Number:

  RTL8306SD-GR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

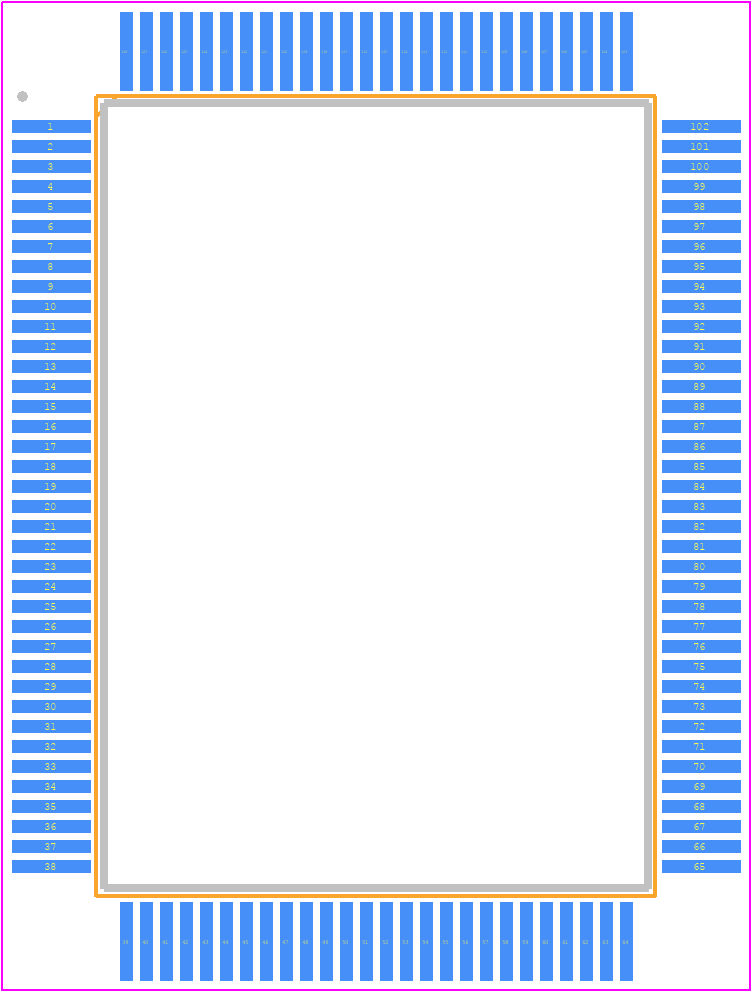

• Package Description:

  QFP-128

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Realtek Semiconductor

• YTEOL:

  0

• Boundary Scan:

  YES

• Clock Frequency-Max:

  25 MHz

• Communication Protocol:

  ETHERNET

• Data Encoding/Decoding Method:

  NRZ; BIPH-LEVEL(MANCHESTER)

• Data Transfer Rate-Max:

  12.5 MBps

• JESD-30 Code:

  R-PQFP-G128

• Length:

  20 mm

• Low Power Mode:

  YES

• Number of I/O Lines:

  63

• Number of Serial I/Os:

  5

• Number of Terminals:

  128

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP128,.67X.93,20

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK, FINE PITCH

• Seated Height-Max:

  3.4 mm

• Supply Current-Max:

  625 mA

• Supply Voltage-Max:

  1.95 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
