RTL8367N-VB-CG - Realtek

Description: The RTL8367N-VB-CG is a QFN88, high-performance 5-port 10/100/1000M Ethernet switch with an

Download RTL8367N-VB-CG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RTL8367N-VB-CG - Realtek - PCB symbol
click to zoom
PCB Footprints

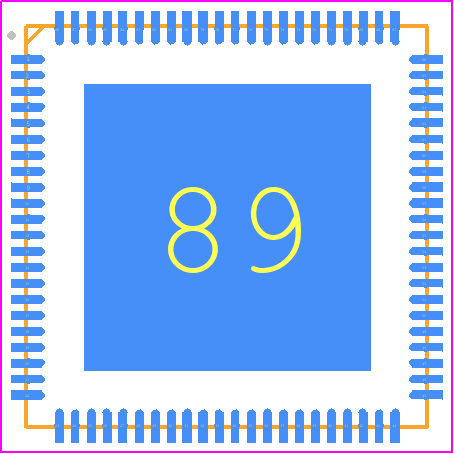

RTL8367N-VB-CG - Realtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (QFN) 88 Leads 10×10mm Outline
click to zoom
3D Models
RTL8367N-VB-CG - Realtek - 3D model - Quad Flat No-Lead - (QFN) 88 Leads 10×10mm Outline
click to zoom

RTL8367N-VB-CG Details

  • Manufacturer Part Number:

    RTL8367N-VB-CG

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-88

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2020-07-08

  • Manufacturer:

    Realtek Semiconductor

  • Boundary Scan:

    NO

  • Bus Compatibility:

    ETHERNET

  • Clock Frequency-Max:

    25 MHz

  • Data Transfer Rate-Max:

    125 MBps

  • JESD-30 Code:

    S-PQCC-N88

  • Low Power Mode:

    NO

  • Number of Terminals:

    88

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, LAN

RTL8367N-VB-CG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the RTL8367N-VB-CG can be found in the Realtek application note AN-134, which provides guidelines for PCB design, component placement, and thermal considerations.
  • The RTL8367N-VB-CG supports VLAN tagging through the use of registers 0x10-0x13. Consult the RTL8367N-VB-CG datasheet and the Realtek VLAN application note AN-135 for configuration details.
  • The maximum power consumption of the RTL8367N-VB-CG is 1.2W, with a typical power consumption of 0.8W. This can vary depending on the specific application and operating conditions.
  • The RTL8367N-VB-CG supports QoS through the use of registers 0x20-0x23. Consult the RTL8367N-VB-CG datasheet and the Realtek QoS application note AN-136 for configuration details.
  • The maximum operating temperature of the RTL8367N-VB-CG is 85°C, with a recommended operating temperature range of 0°C to 70°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RTL8367N-VB-CG Overview

Use the download button to access the RTL8367N-VB-CG schematic symbol, PCB footprint, and 3D model.
