RTQ1741AGQW - RICHTEK

Description: High Efficiency Single Inductor Buck-Boost Converter

Download RTQ1741AGQW Model

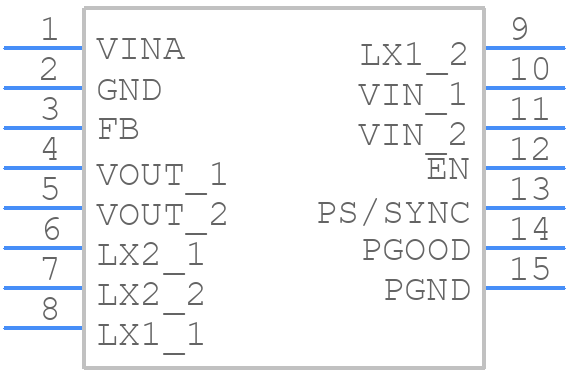

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RTQ1741AGQW - RICHTEK PCB footprint - Other - Other - RTQ1741AGQW-2
click to zoom
3D Models
RTQ1741AGQW - RICHTEK  - 3D model - Other - RTQ1741AGQW-2
click to zoom

RTQ1741AGQW Details

  • Manufacturer Part Number:

    RTQ1741AGQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8

  • Additional Feature:

    ALSO HAS PSM CONTROL TECHINQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-N14

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.004 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2800 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

RTQ1741AGQW Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI03, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Richtek recommends following the power-up sequence outlined in the datasheet, which includes applying a stable input voltage, waiting for the internal voltage regulator to settle, and then configuring the device through the I2C interface.
  • While the datasheet doesn't specify a maximum capacitance, Richtek recommends keeping the output capacitance below 1uF to ensure stability and prevent oscillations. Larger capacitances may require additional compensation or stabilization techniques.
  • The RTQ1741AGQW is rated for operation up to 125°C, but Richtek recommends derating the output current and voltage to ensure reliable operation at high temperatures. Consult the datasheet and application notes for specific guidelines.
  • Richtek provides a troubleshooting guide in their application note ANI05, which covers common issues such as bus contention, clock stretching, and data corruption. Additionally, using an I2C analyzer or logic analyzer can help identify and debug communication issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RTQ1741AGQW Overview

Use the download button to access the RTQ1741AGQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RTQ17, or try a keyword search, such as Switching Regulator or Controllers
